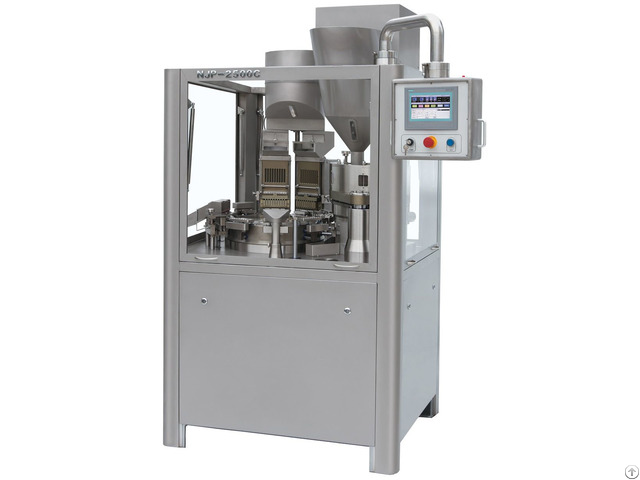

Njp 2000c Automatic Capsule Filling Machine - China
price: 38000.00 Dollar US$
Equipment Model NJP-2000C
Technical Parameter Machine weight 1300kg
Overall dimension (1100+50) × (1010+190) × (1950+150) mm
Motor power 3.37kw + 3kw (Dust Collector)
Power supply 3 phase, AC 380V, 50Hz
Max.
Output 120, 000capsules/hr
Capsule size 00#~5# and safety capsule A~E
Capsule using rate ≥ 99.5%
Noise index ≤ 75Dba
Dosage difference ≤ ±3% (under more than 300mg dosing and 40~80 mesh after granulation)
Compress air Gas displacement 0.06m3/min Pressure 0.3Mpa
Water supply Water cycle pump compound water tank, or meet water source
Vacuum degree -0.02~-0.06 MPa
Water volume 250L/hour
Enter pipe inner-diameter 20mm
Waterspout inner-diameter 27mm
Working temperature 21℃ ± 3℃
Working relative humidity 40~55%
Exhaust capacity 300m3/h
Special function Granule and powder mixed filing; Granule and tablet mixed filling; Powder collector function
(Another pipeline collect powder in the filling port, needn’t disinfect and accede to hopper directly)
Model C: upgraded to PLC control
Material Spare part contact with medicine adopt superior S.
S 304 & 316L
Criterion Conform to GMP completely
Company Contact:
- Posted By: TRUSTAR PHARMA & PACKING EQUIPMENT Co.,Ltd.
- Phone: 86 150 5898 3569
- Address: Economic Development Zone, Ruian City, Zhejiang,China, Ruian , Zhejiang , China
- Email:
- Website: https://www.trustar-pharma.com
Published date: July 12, 2016
- Business Description: Pharmaceutical equipment qualified supplier.
Including mixing, blister packing, capsule filling, tube filling, coating , cartoning machine.
