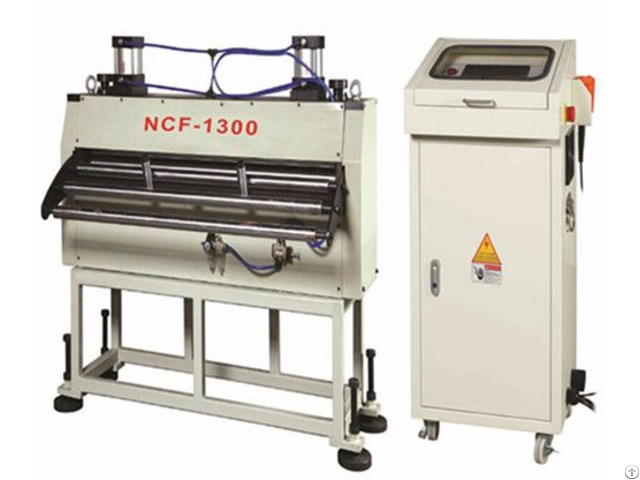

Ncf Servo Roll Feeder Machine For Auto Punching Line - China

NCF servo roll feeder machine A.

Main features : 1 - High precision feeding: Aiming at the arrival of hi-tech industry, it is controlled by computer closed-circuit feedback system.

So that the precision can maintain within +/-0.03mm.

2 - Phase-style feeding function: It can input 20 groups of different feeding length, each group provides punching for 999 times to satisfy the processing and production of special products (option)

3 - Manual model: It can input 3 phases manual speed, which can let used operate more easily and feed materials more accuracy.

4 - High efficiency release device: It can set up release angle quickly, only mact CAM signal of and adjusted feed thickness can done.

5 - Feeding length setting: Input feed length on the controller panel directly.

6 - Feeding unit: The roll adopts middle-hollow style.

Being light and with low inertia for electroplate.

The surface hardness HRC is 60 and hard chrome plated.

B.

Main specification : model : NCF -1300

material width : 1300 mm

material thickness : 0.2-2.2 mm feeding length : 9999.99 mm

feeding speed : 20 m per minute power supply : 380v /415v 3 phase height of feeding line : 90 -250
