Mosi2 Heater - China
price: 35.00 Dollar US$

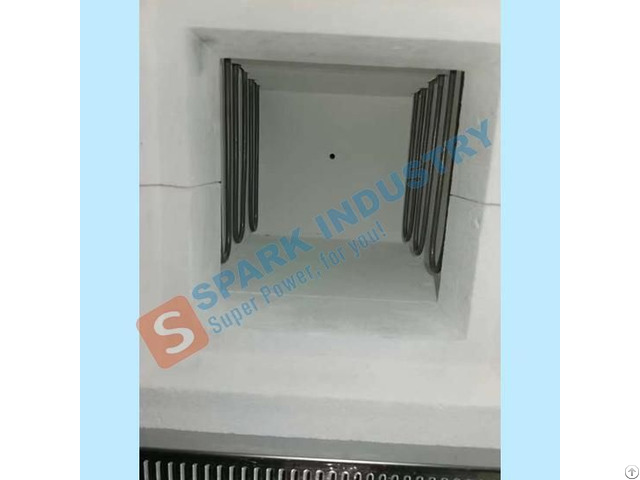

Customized MoSi2 Heating Elements Of Various Specifications And Models Introduction Molybdenum disilicide(MoSi2) heating element is one resistance heating component made from MoSi2 or as the basic material.
When it's heated to high temperature under the oxidizing atmosphere, one dense MoSi2film will be formed on its surface to protect the element against oxidizing further.
Therefore, the element has unique anti-oxidation property under high temperature atmosphere.
The highest temperature can reach 1900°C, the applicable temperature is between 500-1800°C.
Details Material Grade: 1700, 1800 Diameter: D1/D2, mm/mm Hot Zone Length: Le, mm Cold Zone Length: Lu, mm Shank Spacing: A, mm Examples: U-Shape, Material Grade 1800, D1=3mm, D2=6mm, Le=140mm, Lu=125mm, A=25mm Specify as: Songyu SY18, U-Shape, 3/6 x 140 x 125 x 25 Parameters * Shape: I, U, UL, W, WL, Irregular
* Diameter: 3/6, 4/9, 6/12, 7/12, 7/14, 9/18, 12/24(mm)
* Temperature: 1700°C, 1750°C, 1800℃
Main Features * The applicable temperature is between 500-1700°C * Max temperature 1800°C * The element cannot be used for rather long time in 400-700°C Application The MoSi2 Heating Elements can be widely used in such applications as sintering and heat treatment on ceramics, magnet, glass, metallurgy, refractory, etc.
Company Contact:
- Posted By: Spark Industry (Henan) Co., Ltd.
- Phone: +8613917806325
- Address: Rm 201 Building 6, South Commercial Zone,, Xueqian Rd and 1st South Ring, Dengfeng, Henan, Zhengzhou , 河南省 , China
- Email:
Published date: September 7, 2022
- Business Description: A leading manufacturer of SiC heating elements and MoSi2 Heating elements in China.
We also manufacture furnaces of various types and export related products.
