Product overview

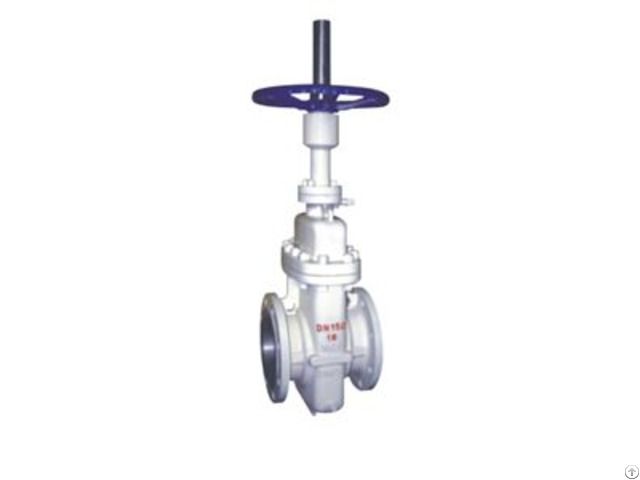

Manual flat gate valve Z43F - 16 c is suitable for natural gas, petroleum, chemical industry, environmental protection, city pipeline, the gas pipeline conveying pipeline, such as steam vent system and the storage device, used for opening and closing device.

This series product adopt new floating type sealing structure, is applicable to pressure is not more than 10 mpa, temperature - 29 ~ 121 degree centigrade on the gas pipeline of H2S gas content is higher, as control opening and closing of the medium and adjusting device, the product structure design, select material appropriate, strict testing, convenient operation, strong corrosion, wear resistance, erosion resistance, is a kind of ideal new oil industry equipment.

Manual flat gate valve Z43F-16C Scope of application:

Flat gate valve is suitable for natural gas, petroleum, chemical industry, environmental protection, city pipeline, the gas pipeline conveying pipeline, such as steam vent system and the storage device, used for opening and closing device.

Z43 diversion hole Single valve plate Flat gate valve Suitable for gas drilling and purification Long distance pipeline .

Manual flat gate valve Z43F-16C Structural characteristics and working principle

1, adopt the floating seat, two-way opening and closing, reliable seal, flexible opening and closing.

2, valve plate are oriented to give precise guidance, at the same time, sealing surface spraying weld hard alloy, resistance to erosion.

3, high carrying capacity of the valve body, the channel for straight-through, fully open, and valve plate similar diversion hole through and straight pipe, the flow resistance is very small.

Stem with composite packing, multiple seal, make reliable sealing, low friction.

4, close the valve, rotating the handwheel clockwise, valve plate down to the bottom, due to the effect of medium pressure, will be imported into the valve end seal seat plate direction, form a larger sealing pressure, thus forming the first line of the seal.

At the same time, the valve plate to the outlet pressure sealing seat, become a double seal.

5, due to adopt double seal, so can work without affecting pipeline under the condition of replacement parts.

This is our factory product prior to the important characteristics of similar products at home and abroad.

6, open the valve plate, the handwheel counterclockwise, valve plate up, diversion hole with channel pore penetration.

As the valve plate, the rise of the communicating pores increase gradually, to limit position, diversion holes collocated with the channel holes, fully open at this time.

Manual flat gate valve Z43F-16c the major parts materia

NO.

Part name material

ordinary Sulfur resistant

GB ASTM GB ASTM

1 drain plug 25+Zn A105+Zn 1Cr18Ni9 A276-304

2 grease nipple 25+Zn A105+Zn 25+Zn A105+Zn

3 The valve body WCB A216-WCB WCB A216-WCB

4 valve plate 16Mn+ENP A105+ENP 1Cr18Ni9 A276-304

5 The seat 16Mn+PTFE A105+PTFE 1Cr18Ni9+PTFE A276-304+PTFE

6 o-ring NBR NBR FPM FPM

7 The valve stem 2Cr13 A276-420 1Cr18Ni9 A276-304

8 Packing tower 2Cr13 A276-420 2Cr13 A276-420

9 Y type circle NBR NBR FPM FPM

10 gland 2Cr13 A276-420 2Cr13 A276-420

11 Indication rod 1Cr18Ni9

12 gasket Flexible graphite+1Cr18Ni9 Flexible graphite+304 Flexible graphite+1Cr18Ni9 Flexible graphite+304

13 The cover WCB A216-WCB WCB A216-WCB

14 stud 35CrMoA A193-B7 35CrMoA A193-B7

15 nut 45 A194-2H 45 A194-2H

16 stents WCB A216-WCB WCB A216-WCB

17 Stem nut ZQA19-4 C95500 ZQA19-4 C95500

18 gland 25 A105 25 A105

19 The handwheel 25 A536-60-40-18 25 A536-60-40-18

20 Instructions to cover 25 A105 25 A105
