Made In Japan Yokogawa Admag Ca Magnetic Flow Meters - China

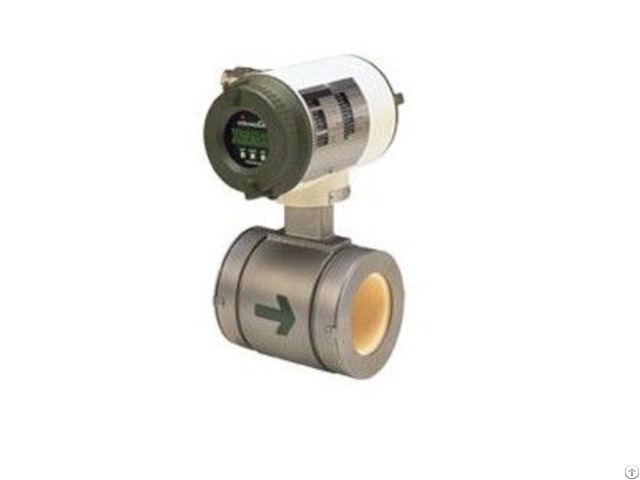

ADMAG CA Magnetic Flow Meters

The ADMAG CA magnetic flow meter adopts a system to pick up the electromotive force generated in a fluid by electrodes provided outside a ceramic pipe through the capacitance of the pipe.

In addition, the flow meter employs a prominent high-frequency excitation method that reduces flow noise in low conductivity fluid.

ADMAG CA magnetic flow meter is excellent at measurement in ultra-low conductivity fluids down to 0.01 microS/cm, adhesive fluids, or slurry fluids.

Since ADMAG CA employs a non-wetted electrode construction, picking up the signal voltage by electrode plates provided outside a ceramic pipe through the capacitance of the pipe.

Models CA100SG/SN/SC and 200SG/SN/SC Capacitance Magnetic Flowmeter

ADMAG CA magnetic flowmeter is excellent at measurement in ultra-low conductivity fluids down to 0.01 µS/cm, adhesive fluids, or slurry fluids.

Since ADMAG CA employs a non-wetted electrode construction, picking up the signal voltage by electrode plates provided outside a ceramic pipe through the capacitance of the pipe.

■ FEATURES ■ Non-wetted electrodes • Immune to adhesive or slurry fluids • Wide measurable range, minimum 0.01 µS/cm of conductivity.

(for size 15 to 100 mm (0.5 to 4 in.

)) • Leak Proof Electrode ■ Excellent on corrosive fluid and abrasive fluid • Alumina ceramics (99.9 %) ■ Dual compartment housing separates the wiring section from the electronics and protects the electronics from corrosive environments.

■ High accuracy, ±0.5 % of flow rate (size 25 to 100 mm (1 to 4 in.

)) ■ STANDARD SPECIFICATIONS Degrees of Protection : IP67, Type 4X Grounding: • 100 Ω or less •When optional code A (lightning protector) is selected, Class C (10 Ω or less) •In case of TIIS Flameproof type, Class A (10 Ω or less) or Class C (10 Ω or less) •In case of explosion proof type except TIIS, follow the domestic electrical requirements as regulated in each country.

If u have more details information need checking, pls kindly let me know freely ~
