light weight stage hoist

(speed) : 4m/min

(net weight of gourd) : 30kg, (load bearing) : 1000kg

(power supply voltage) : 380v-50hz-3p (customizable)

(chain length) : 25m (conventional, customizable); IP: 56

Stage Electric Chain Hoist factory: Guangzhou sinray stage equipment co, .

ltd

Product description: Exporting aluminum stage electric hoist, stage Simple electric chain hoist, we 220v stage hoist factory can offer you 1T aluminum shell electric hoist with patented overload protection clutch, adjusta

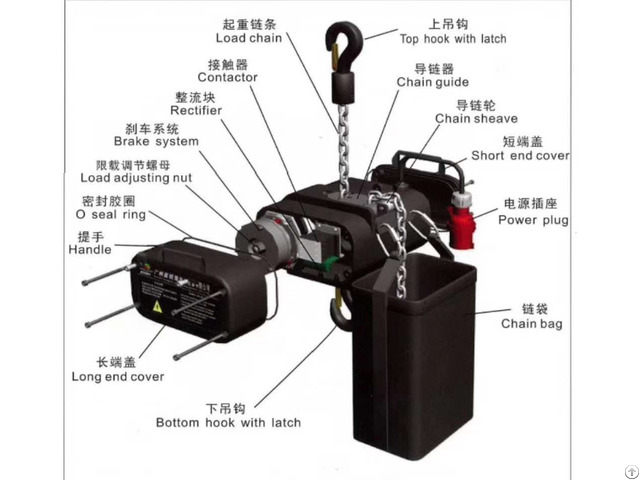

1, double friction disc brake system

2 - Control: electric hoist is equipped with standard connecting cable and CE connector.

The power supply is 380V with 3-phase, built-in limit device

3 - The shell is rainproof and high-strength aluminum alloy structure shell.

4, transmission device: permanent gear in a lubrication system, so that the gear operation more smoothly, cooling, lubrication, extend the service life

5 - Lifting chain: G100 galvanized lifting chain, 25 meters in length, class T: 1000 n per square mm in breaking degree, class 10 in safety coefficient.

6 - Motor: insulation grade F.

The maximum allowable temperature is 155 degrees, the winding temperature rise limit can reach 100 degrees, and the performance reference temperature can reach 100 degrees.

7 - Chain guide device: special five-hole lifting sprocket, which makes the chain lift and balance; Nylon chain protector: as long as the chain is not knotted, it can run smoothly.

8 - Reliability: the hoist is equipped with patented overload protection clutch, which can protect the safety of the operator and the product from damage in case of overload.

9, built-in adjustable limit switch, can automatically stop at any predetermined position in the up or down using the hoist (optional).

10, safety: lifetime maintenance, and provide related accessories and technical support
