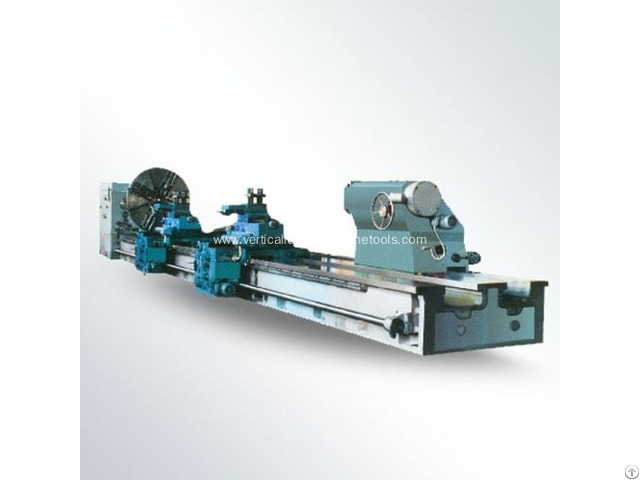

Large Centre Lathe Machine For Sale - China
price: 90000.00 Dollar US$
Technical specification of Centre lathe machine CW61200
1 Maximum swivel diameter on the bed 2000 mm
2 Maximum turning diameter over carriage 1750 mm
3 Maximum length of workpiece 80dm
4 Maximum weight between center 63t
5 Diameter of faceplate 2000mm
6 Maximum torque of faceplate 100KN.
m
7 Range of spindle speeds 0.63-125 r/min
8 Maximum cutting force of carriage 90 KN
9 Total cutting force 160 KN
10 Range of feed rates ( long) 0.265-500 mm/min
11 Range of feed rates(Trans ) 0.106-200 mm/min
12 Range of feed rates(longitudinal) 0.053-100 mm/min
13 Rapid speed of of carriage( long) 3000 mm/min
14 Rapid speed of of carriage( Trans) 1200 mm/min
15 Dimensions of close mode steady supporting Φ200-700 mm
16 Dimensions of open mode steady supporting Φ700-1000mm
17 Scale of tool bar section 70×70mm
18 Power of main motor DC: 100KW
19 Machine weight(Approx) 87 T
20 Overall dimensions(L×W×H) 1156×304×275cm
Company Contact:
- Phone: 0086-18330891102
- Address: No. 01, Shengyong Road, Matou Industrial Zone,Fucheng County,, Hengshui City, Hebei Province, China
- Email:
Published date: October 11, 2016
- Business Description: Hengshui Shengyong Heavy-duty Machine Tool Manufacturing Co., Ltd specializes in the researches, developments, manufactures and sells of metalworking machines: CNC lathe , Vertical lathe , vertical turning lathe, vertical turret lathe, Heavy duty horizontal lathe machine, Gantry milling machine, plano miller, boring milling machine and roll turning lathe etc.
If interested, feel free to contact us
