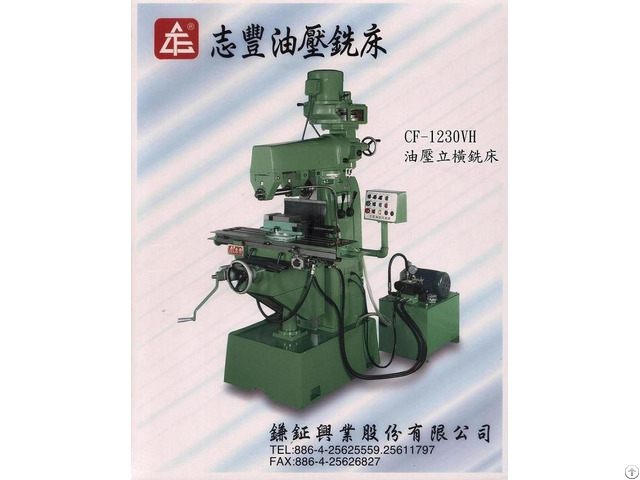

Hydraulic Vertical Horizontal Milling Machine Cf 1230vh - Taiwan
price: contact company for price
Models (CF-1230VH)
Table Working surface(length × width) 1000×230mm Table travel(x/y/z) 500×230×385mm T-slots 16mm×3 Vertical Spindle Spindle nose N.T.#40 Spindle speed(8 steps)R.P.M 210, 420, 690, 980, 1380, 1720, 1960, 3440(60Hz) 170, 340, 570, 810, 1140, 1430, 1620, 2860(50Hz) Distance from spindle end to table top 50-525mm Distance from spindle center to column 150-450mm Vertical travel of quill surface 125mm Swiveling angle of head(right & left) 90 Cross travel of ram 230mm Horizontal rotation angle or ram 360 Horizontal Spindle Spindle nose N.T.#40 Spindle speed(6 steps)R.P.M 50, 120, 210, 320, 470, 1180(60Hz) 40, 100, 170, 260, 390, 980(50Hz) Distance from spindle center to table top 0-470mm Distance from spindle center to ram bottom 115mm Motors For vertical spindle 1.5KW(2HP)-4/8P For Horizontal spindle 1.5KW(2HP)-4P For table feed 1.5KW(2HP)-4P For cutting fluid pump 0.1KW(1/8HP)-4P Size of machine Net weight 1, 200kg Dimensions of packing case 1150×1205×1700mm
Company Contact:
- Posted By: LIAN JENG CORPORATION
- Phone: +886425625559
- Address: No. 168, Guangqi Rd., Shengang Dist., Taichung City. , Taiwan
- Email:
Published date: February 17, 2017 - Modified date: February 17, 2017
- Business Description: LIAN-JENG CORPORATION was established in 1981.
In the same year we launched the universal vertical and horizontal milling machines,
whose quality and performance to provide guaranteed excellent machinery for customer's best choice.
Nevertheless, to obtain better efficiency and consistent quality,
we put great efforts into developing automatic hydraulic milling machine.
