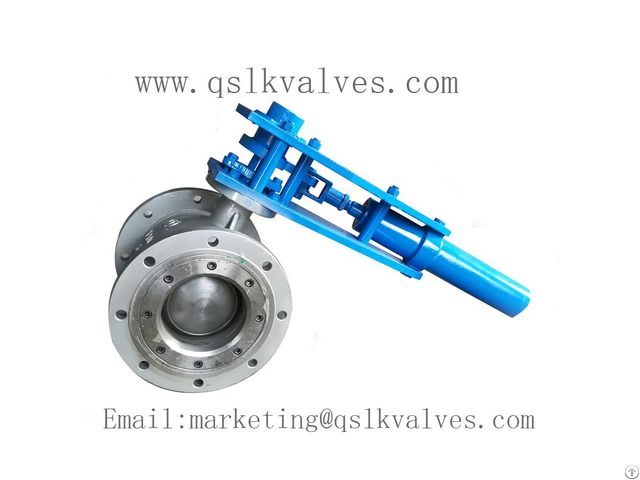

Hydraulic Operated Eccentric Hemspherical Valve - China

Hydraulic Operated Eccentric Hemspherical Valve is a high performance ball valve we have developed with advanced technology.

It is designed to C type ball valve on the base of O type ball valve, which solves the difficulties of? conveyance of "solid-liquid" and "solid-gas" two phase medium.

BENEFITS 1 - With straight through type valve body, this valve can keep the fluid flow by linear when the valve fully opened, so it reduced less energy loss compared with other valves.

2 - Easy to operate: As the valve disc moved away from valve seat without any contact, so it has smaller starting torque compared with O type ball valve and easy to operate.

3 - Because of double eccentric structure design, the segment ball valve is perfectly sealed and can be closed tightly .

4 - When the valve is closed, the wedding force is able to remove the foreign materials, therefore it has anti-scaling performance.

5 - Welding type connection with pipe line, it avoid leakage from the flange .

6 - The weight is light compare to O type ball valve, so it reduced the cost of maintenance and man power.

7 - Both top entry and side entry can be manufactured .

SPECIFICATION: 1 - Size: DN200

2 Pressure: PN6

3 - Material: WCB 4 - Sealing material: Hard Alloy 5 - Connection method: Welding type 6 - Driving method : Hydraulic Operated

7 - Design standard : GB/T 26146-2010 APPLICATION: Municipal Industry Steel Industry Soda Industry Water Industry
