Hot Sale Accurat Oxygen Purity Analyzer Analytical Instrument - China

Specification

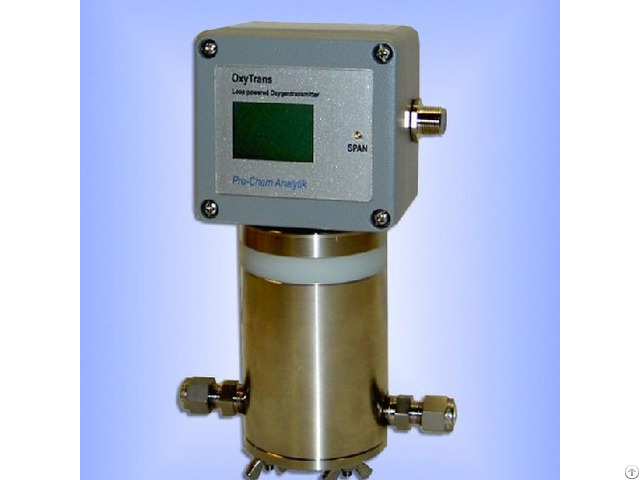

OxyTrans 4 – 20 mA Loop Powered two wire

Oxygen Transmitter Two Wire Process Oxygenanalyzer

The Model OxyTrans is simple, accurate andeconomic measurement of Oxygen at traceand % levels.

A simple Display and one point calibration allow easy and fast start-up of the instrument.

optional 1/2 G Ex ia IIC T4 (ATEX) One User specific measuring range

The unit will offer with ranges between

0-10 ppm and 0 – 100% of oxygen.

Sensor

The OxyTrans uses a special fuel cell to measure the oxygen concentration.

The sensor meets the industrial requirements for accuracy, sensitivity, easy to use and operating life.

Calibration

The calibration of the instrument for trace oxygen measurements in gas, should be done with a calibration gas.

The concentration can be chosn freely within the measuring range.

In the percent range the unit can calibrated with air.

Features

compact

inexpensive

Sensor with long operating life

IP65 enclosure

reverse voltage protection and temperature compensation Flow-through measuring cell inStainless Steel

• The measuring cell is modular and is made of stainless steel

• A defective measuring cell can be repaired by replacing the defective part only, rather than the complete unit Specification

Measuring ranges: ppm : 0-10, 0 - 100; 0 – 1000; 0 - 10000 ppm O2 % : 0 - 25; 0 – 100 % O2

Accuracy : +/- 2% FSD T= konst.

+/- 5% FSD 0>T>50°C

Resolution : 0, 1 ppm < 0-100 ppm 1 ppm at 0- 1000, 0-10000 ppm 0, 1 %

Response time : 90 % FSD at 25°C 0-10 ppm < 45 s 0-100 ppm < 20 s 0-1000 ppm < 10 s

Operating : 0 - 50°C

Temperature Pressure : 0, 1 - 1 bar

Signal output : 4 -20 mA/DC

Calibration : with calibration gas, air

Alarm value : 3, 8 mA (Standard) or 23 mA ( if desired )

Voltage : 10 – 35 VDC reverse voltage protection up to 40VDC

load : typ.

470 Ohm, max.

750 Ohm

Display : 6 Digits, alphanumeric with bar graph

oxygen sensor : Micro-Fuell Cell, housing : IP65

Size : 120 x 160 x 65 ( B x H x T )

Weight : 1, 2 kg
