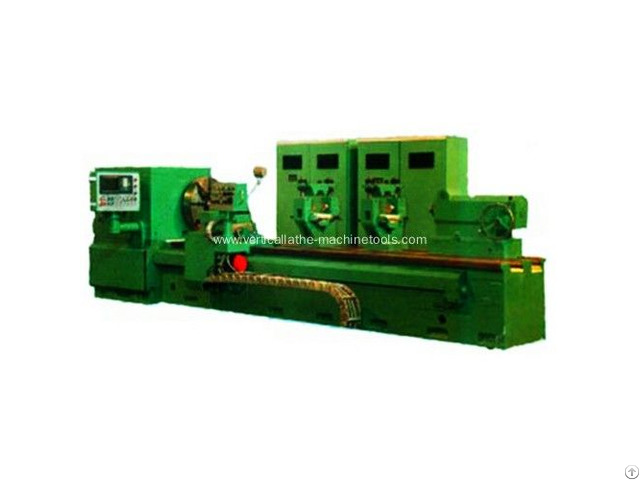

Heavy Duty Cnc Roll Turning Lathe Machines Ck84160 - China
price: contact company for price
Technical specification of Heavy duty CNC roll turning lathe machines CK84160
1 Maximum turning diameter of workpiece
flat rolling : 550-1800 mm
roll pass : 550-1600 mm
2 Maximum length of workpiece 50/60/70 dm
3 Maximum weight of workpiece 63/80 t
4 Height of center 1050 mm
5 Diameter of faceplate 2000 mm
6 Maximum torque of faceplate 125 KN.
m
7 Range of spindle speeds 0.4-60 r/min
8 Maximum cutting force of carriage 160 KN
9 Range of feed rates ( long) 1-4000 mm/min
10 Range of feed rates(Transverse) 1-4000 mm/min
11 Travel of tailstock quill 250 mm
12 Dimensions of mode steady supporting 350-600 mm
13 Power of main motor 100 KW
14 Machine weight(Approx) 86 t
15 Overall dimensions(L×W×H) 1680×402×241cm
Company Contact:
- Phone: 0086-18330891102
- Address: No. 01, Shengyong Road, Matou Industrial Zone,Fucheng County,, Hengshui City, Hebei Province, China
- Email:
Published date: October 11, 2016
- Business Description: Hengshui Shengyong Heavy-duty Machine Tool Manufacturing Co., Ltd specializes in the researches, developments, manufactures and sells of metalworking machines: CNC lathe , Vertical lathe , vertical turning lathe, vertical turret lathe, Heavy duty horizontal lathe machine, Gantry milling machine, plano miller, boring milling machine and roll turning lathe etc.
If interested, feel free to contact us
