Gq Series Hydrogen Distributing System With Storage Tank - China

GQ series hydrogen distributing system with hydrogen storage tank

GQ series hydrogen distributing system We provide technical proposals of hydrogen delivery, hydrogen storage, hydrogen distribution, control of hydrogen flow and pressure and etc.

for clients.

Hydrogen distributing system features

• Different Mount Configurations

• The hydrogen distributing systems could be designed to be Wall-mounted configuration or bracket-mounted configuration, according to user requirements.

The type could be Single-side type, double-side type, and double-row automatic switching type.

• Delivery flow is adjustable.

• Delivery pressure is adjustable.

• The system deliveries hydrogen according to end user’s demand.

Full configuration of auxiliaries:

High-pressure hoses (outer tube: 316ss, inner tube: PTFE, copper hose), safety components (filter, flame arrester), Alarm devices, cylinder rack, all kinds of imported online gas analyzers.

Hydrogen distributing system technical specifications: Inlet pressure 20MPa, 15MPa, 10MPa.

4.0MPa, 1.6MPa

Outlet pressure

customized

Pressure control accuracy

± 0.05MPa

Flow control

Use Mass flow meter and control valve to control flow

Piping

stainless steel seamless pipe for main pipe

Leakage rate

hydrogen leak rate is less than 0.5% / h Cylinder rack features

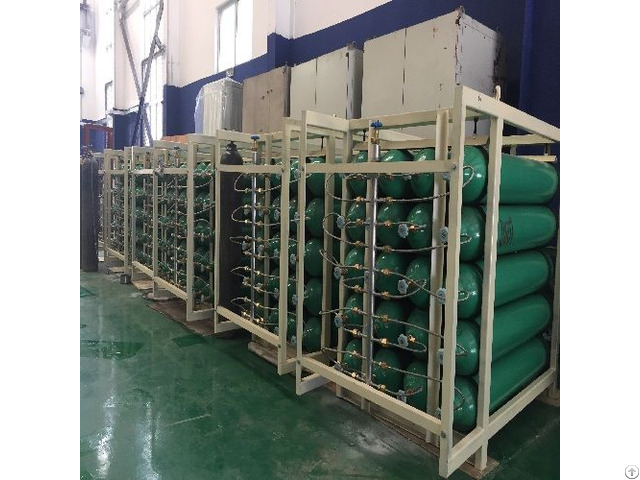

• High pressure resistant

• Convenient replacement of the manifold

• Easy to lift and transport racks

• Cylinder rack is configured with special bottle fixing device

• Cylinder rack has anti-collision measures.

Cylinder rack technical specifications:

• Number of cylinders in one rack: 20, 16 and 12

• The connection between cylinders and main manifold: threaded connection, welding

• Manifold material: polished stainless steel seamless pipe • Manifold pressure 20MPa

• Manifold connection type: external thread connection

• Manifold connection specification: W21.8×1-1/4-LH
