Fm2 5 Mini Truck Concrete Mixer - China
price: 30000.00 Dollar US$
china coal0001

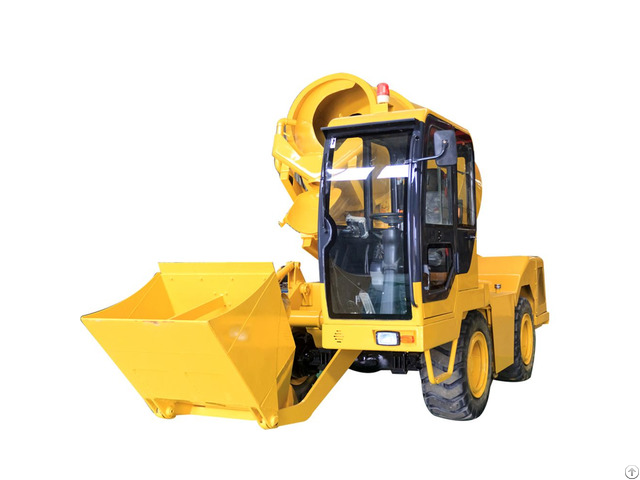

FM2.5 Mini Truck Concrete Mixer
Introduction of FM2.5 Mini Truck Concrete Mixer
1 - FM2.5 Mini Truck Concrete Mixer adopt Italy leading design, automatic feeding mixing system
2 - Simple and convenient operation
3 - High efficiency output, save time and effort, cost saving
4 - Mixing tanker and loading vehicle combo perfect combination
5 - Warranty 12 months, perfect after-sales service
6 - The wheel steering is assisted by a double displacement load-sensing power steering system on 2 steering wheels
7 - Hydraulic torque converter, open hydraulic gear pump, reverse gear control device.
Control “working speed”and “moving speed” Speed
Parameter of FM2.5 Mini Truck Concrete Mixer Model FM2.5
MIXING DRUM CAPACITY 2.5 Cubic Meter
TYPE movable, self loading, mixing, transporting
FUNCTION concrete, sand, fertilizer compound, wet or dry feed materias mixing and discharging
PRODUCTIVITY BATCH≤15MINS, 4BATCHS/HOUR
ENGINE 6 cylinders 110kw
SPEED HIGH SPEED: 22.4KM/H; LOW SPEE: 6.5KM/H
Wheelbase 2000mm
TIRE 10.00-20 (project machine tire) 4 pcs
TANK SPIRAL BLADE Double helix stirring with diversion was more uniform.
Left feed material, right discharging
MIXING DRUM INCLINATION 16°
Discharge Chute Discharge chute high 1.6m, Parallel steering speed ≤ 3 r / min, steering angle 270 °
TIPPING CHUTE ADJUSTABLE ANGLE, 2-segment tipping chute can be dismantled, can expand the discharing length
SHOVEL shovel capacity: 600L discharge: hydraulic valve
OPERATION HANDLE ELECTRIC CONTROL BUTTON FOUR-WAY GUIDE HANDLE
MOVING HYDRAULIC PUMP: Italian or Chinese origin
SPEED REDUCER FX300
WATER SUPPLY HYDRAULIC DRIVING SELF-PRIMIING PUMPS.
WASHING HIGH-PRESSURE WATER PUMP WASH
HYDRAULIC OIL BOX TANKAGE200L, SUMMER: NO68 HYDRAULIC OIL, WINTER: NO46 HYDRAULIC OIL, VERY COLD ZONE: NO35 HYDRAULIC OIL
WATER TANK VOLUME 300L
DIESEL TANK VOLUME 112L
WEIGHT COMPLETE VEHICLE KERB MASS 7000kg TOTAL MASS 14200kg
MOVING STATE SIZE 5400*2530*4300mm
SHOVEL STATE SIZE 7100*2530*3100mm
ALARM LAMP STANDARD CONFIGURATION
RADIO STANDARD CONFIGURATION
ESCAPE HAMMER STANDARD CONFIGURATION
COATRACK STANDARD CONFIGURATION
Reversing audio cue STANDARD CONFIGURATION
Headlight LED light
Taillight LED light
FORWARD GEAR ELECTRONIC CONTROL
HIGH AND LOW SPEED ELECTRONIC CONTROL
IMPORTED HYDRAULIC PIPE STANDARD
