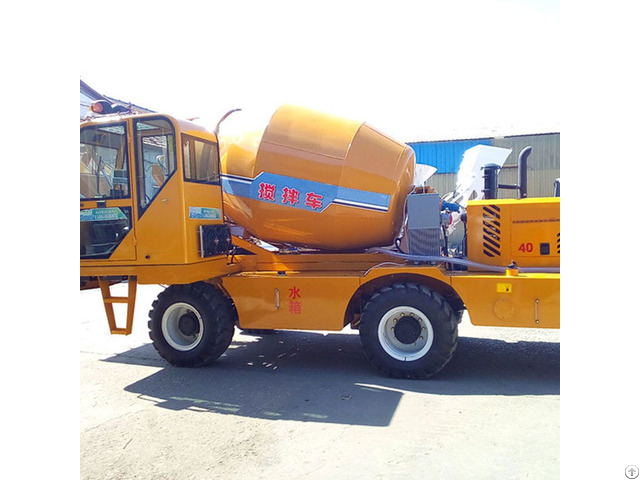

Fm10 Mobile Concrete Mixing Truck - China
price: 30000.00 Dollar US$
china coal0001
FM10 Mobile Concrete Mixing Truck Introduction of FM10 Mobile Concrete Mixing Truck With the expansion of urban construction scale and the improvement of urban functions, urban construction and municipal construction will require a large capacity mixer truck, mine tunnel construction also need such a mixer.
Self-loading, dumping, self-stirring, the large capacity mixer truck is made to reduce the labor intensity of workers to keep the town clean and beautiful, to promote the progress of construction projects, it will play a very important role.
Advantages of FM10 Mobile Concrete Mixing Truck 1 - Italy technology, self propelled concrete mixing system
2 - Easy operating control
3 - High efficiency
4 - Mixer and loader joint together perfectly
5 - Two direction discharge materials Parameter of FM10 Mobile Concrete Mixing Truck Vehicle Curb weight kg 7000 Drive 4 wheels Steering mm Front wheels Tyre mm 10.00-20 Transmit speed km/h 0-20 Working speed km/h 0-9 Gradient degree 15 Dimension(for shipping, shovel dismantled) (L*W*H) mm 5300*2450*3360
Engine Model / Dongfeng Cummins 4BTA3.9-C125 Power kw/r/min 93kW(126.5HP)/2200rpm Emission L 3.9
Mixing drum Geometrical volume m3 12 Mixing capacity m3 10 Inclined angle degree 16 Feeding speed m3/min 1.5 Discharging speed m3/min 1 Remnant rate % <=1 Slump rate mm 160-230 +-30%
Hydraulic system Hydraulic pump Imported Bosch Rexroth pump Hydraulic motor China top brand Speed reducer China top brand
Water supply Water tank capacity L 300 Supply method Hydraulic driven water pump
Company Contact:
- Posted By: Shandong China Coal Group
- Phone: 865372350961
- Address: No.11 Kaiyuan Road, Jining , China
- Email:
- Website: https://www.chinacoalintl.com
Published date: July 31, 2018
- Business Description: Shandong China Coal Industrial&Mining Supplies Group Co., Ltd
(hereinafter referred to as china coal) is a group company .
which is a
collection of e commerce, machinery manufacturing, software, research
and development, modern logistics of large diversified industrial group.
