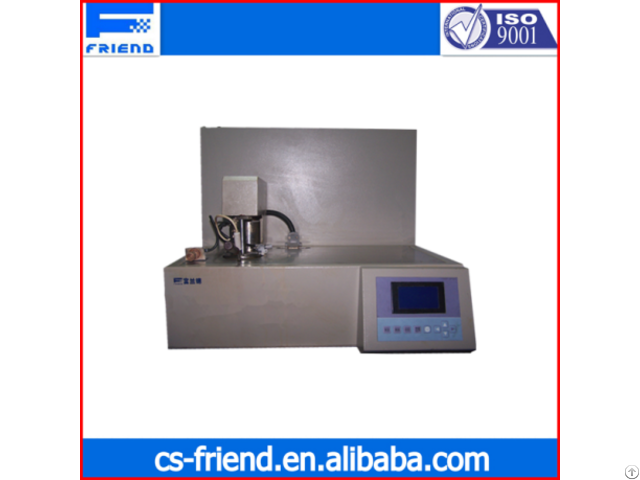

Fdt 0233 Automatic Low Temperature Closed Cup Flash Point Tester - China

Scope

Standard GB / T261-83 and ISO2719-1988 international standards.

Features

1, large-screen LCD, friendly user interface

2, also has a fault of Jane function, automatic fault prompts

3, automatic temperature control, automatic lid opening and ignition, automatic print, automatic cooling, automatic air pressure correction is completed and the machine automatically displays the flash point temperature, built-in mini thermal printer to automatically report the test results

4, using USB / 232 communication interface to communicate with the host machine, a centralized management system for easy composition

5, from Germany imported stainless steel temperature sensor for detecting the temperature data is accurate and reliable

6, mechanical moving part of the servo-driven belt drive, work without gaps, low noise, reliable easy to damage, no lubrication maintenance.

7, just set the expected flash point, the instrument automatically in strict accordance with the standard test, the test ends automatically print test results, and there is a tone.

Without judgment and do not rely on the operator's proficiency.

8, thermocouple detection sensitivity high detection accuracy, durability and easy maintenance.

9, sample box with built-in cooling mode heating thermostat thermal compound, and the use of German imports whisk Dan Adams compressors, thermostats no lag reliable, easy to damage

Technical Parameters

1 - Environment: Temperature 0 ~ 60 ℃ Relative humidity: ≤ 80%

2, Display: large-screen LCD

3, heating rate: less than 50 ℃ 1 ℃ / min, higher than 50 ℃ 2-3 ℃ / min

4, temperature range: -30 ~ + 80 ℃, accuracy ± 1 ℃

5, the temperature measurement element: PT100 stainless steel temperature sensor

6, the ignition: gas flame ignition

7, Detection: Automatically detects a flash fire and automatically print test data.

8 - Communication: USB / 232 communication interface.

9, cooling system: compressor cooling

10, print: You can print the results of this experiment or any print storage

11, using the power AC220V 50Hz, the total power: 1.5 kw
