Drum Ore Washing Machine - China

Principle of drum washer:

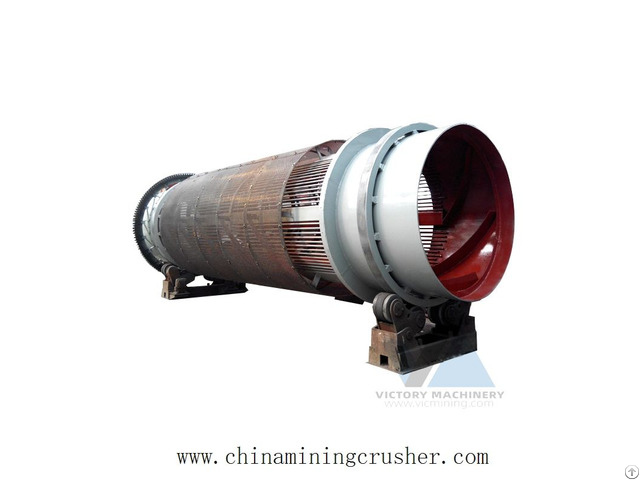

The drum washing machine is supported by four tugs, and the drum rotates at a low speed with the motor and reducer driving the big and small gears.

The ore containing mud and stone powder is fed from the feed inlet through the feeding device, and the ore entering the rotating drum is cleaned.

The drum is equipped with a mixing device with a specific angle, which is continuously taken, thrown and stirred.

During the multiple circulation process from the feed end to the discharge end, the ore is continuously washed by the high-pressure water column in the direction of or in the direction of the reverse direction.

The cleaned ore is discharged into the sewage tank at the discharge end.

The dehydrated product is discharged and sent to the finished product pile.

The sewage containing sludge flows out through the sewage device at the discharge end, and after the sedimentation in the three-stage sedimentation tank, it is ready for re washing and recycling.

Purpose of drum washer:

The ore washing machine can avoid the slime in the raw material of slime from blocking the crushing or screening equipment.

If the raw material contains soluble useful or harmful components, ore washing should also be carried out.

In addition, the ore washing machine can effectively improve the taste of ore, which has significant economic benefits in view of the reality of many poor mines in China.

[feed particle size]: 250mm-400mm

[processing capacity]: 30-250 T / h

[application scope]: commonly used in the cleaning process of bauxite, barite, manganese ore, iron ore, limestone, tungsten ore, tin ore, silica ore and other mineral raw materials.

[product introduction]: the drum washing machine is widely used to clean the sediment before ore dressing of iron, manganese, limestone, tin ore and other ores with more mud.

It can mix, wash, separate and desliminate the minerals and other hard to wash large ores.

The ore washing efficiency can reach about 98%.

This combination is the most effective method for the hard to wash ores at present.

Introduction to drum washing machine:

The drum washing machine is widely used to clean the sediment before ore dressing of iron, manganese, limestone, tin ore and other ores with more mud.

It can mix, wash, separate and desliminate the minerals and other hard to wash large ores.

The ore washing efficiency can reach about 98%.

This combination is the most effective method for hard to wash ores at present.

The drum washing machine is used to clean the slime bearing ore before the implementation of the beneficiation process and improve the beneficiation index of the later process.

It is commonly used in the cleaning process of mineral raw materials such as alunite, barite, manganese ore, iron ore, limestone, tungsten ore, tin ore, silica ore, etc.

The drum washing machine is a large-scale equipment used in black and non-ferrous metallurgical mines, iron and steel, metallurgy, chemical industry and building materials to clean ore and stone.

The larger processing capacity of the washing machine is an ideal equipment for enterprises that meet the requirements of large productivity for the cleanliness of ore and stone.
