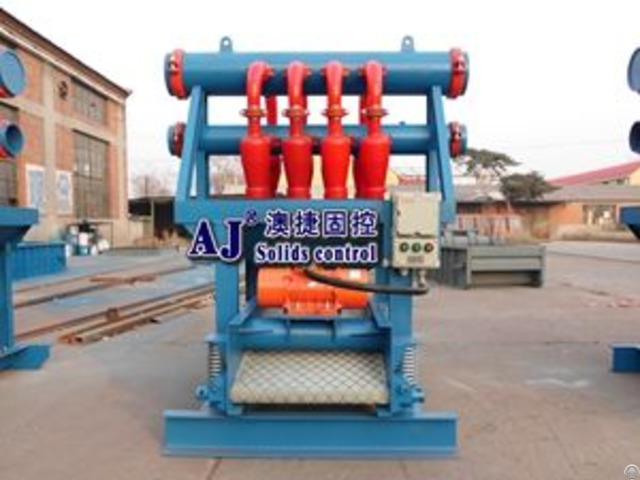

Drilling Mud Desilter - China

Hydrocyclone desilter is a two-level, three-level solid control system to treat the drilling fluid.

According to the diameters of cyclone, there are cyclone desander and cyclone desilter.

Generally, less than 8″ (4″ and 5″) cyclone combination is called as “desilter” which is mainly applied to separate the solid particles (15-47μm) in the drilling fluid.

According to customer’s requirement of throughput, combine various cyclones into the desilter.

The cyclone desilter is widely applied to cyclone desilting separation in petroleum drilling, horizontal directional drilling, sewage treatment, etc.

Features of desilter

1 - Sand size solids removal (12~47 microns)

2 - Polymeric cones

3 - Lightweight, compact

4 - Customized cone configuration specific to customer needs

5 - S.

S Clamp and flange type optional

6 - Lifting eye welded to frame

Benefits

1 - Better effect for subsequent process

2 - Durable and low cost replacement

3 - Save much space and provide easy handling

4 - More flexible, user-friendly and proper cost

5 - Provide easy control on treating capacity

6 - Give user convenience on cones installation, etc.

7 - Better to protect equipment when handle and transport
