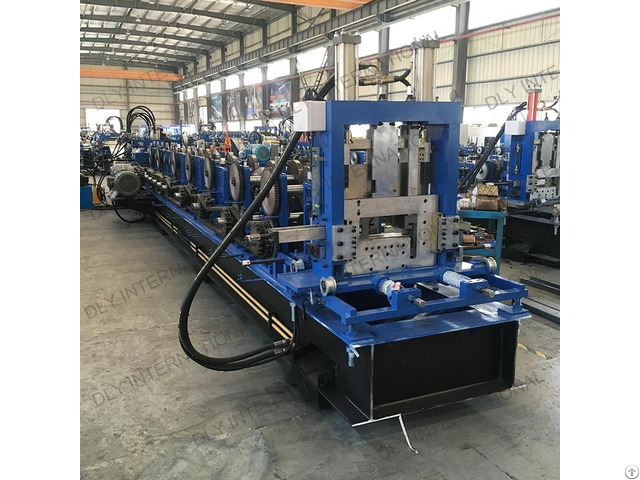

Light Steel Frame Machine CZ purlin machine
Brief introduction of CZ machine
CZ purlin machine was used for produce C profile and Z profile for steel constructions.
our CZ purlin machine adopt PLC automatic control system, only need one person to operate.
Our advantage is we have professional design team, we take EU machine quality as our machine standard.
And have CE certification.
We pay attention to every machine details and components, so the quality of our machines has been recognized by our customers and peers.
Light steel frame construction is very environmentally friendly, good security, is being recognized and accepted by more and more people.
we are constantly improving our machines, to provide customers with more intelligent, stable and efficient equipment.
DLY CZ machine specifications Parts Specifications Mark
1 Forming structure 450*200 H steel flatness ±0.2mm
2 side motor for change CZ power: 0.75KW/set Total 3set Meiling motor, RV reducer
3 Axis Cr12 CNC process and vacuum heating treatment to HRC58-60, tolerance +0.05 mm--0.08mm
4 roller 40Cr CNC process and thermal refining HRC28-32, then finishing, polishing and galvanized Tolerance -0.02mm -0.05mm
5 Side board A3 steel thickness43mm CZ change position have safety pin
6 Feeding Guide axis and roller
7 Leveling 7 axis(up 3 down 4)and one more guiding, heating treatment and polishing and galvanized
8 Straightening Ten roll CZ dedicated to two axial alignment + four roll two axial alignment, a total of two alignment units
9 Punching before forming One signal + one set double+ two set side, signal hole φ14 mm, double hole size14*22 mm.
(can make according to customer order)
7 cutting Cutting before forming and end cutting infinite system Scissors material: Cr12MoV
