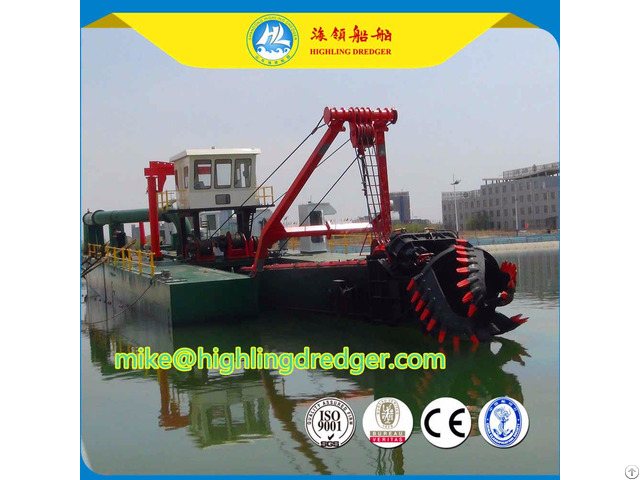

Cutter Suction Dredger Water Flow 4500m3 H And Discharge Distance 2000m - China
price: 1200000.00 Dollar US$
General description:
Cutter suction dredger is self-propelled or non self-propelled, portable cutter suction dredger
Hull can be dismantled and re-assemble easily with box structure
Equipped with horizontal shifting devices, cutter ladder lifting devices, spud devices, deck crane
Widely used in sand-excavating, river dredging, channel maintenance and broaden, desalting, reclamation for channels and land, port construction
Advantages:
1 - Reliable and efficient: key component like engine, pump and hydraulic system are adopted the international brand
2 - Tested in pool before delivery: we do quality test for every dredger before delivery to assure every part function properly
3 - Services: experienced engineers to guide installing and training local workers
24/7 technical support standby
Free spare part in the first year, low cost for services
4 - Dismantled and easy transport
HL550 (22inch 4500m3/h) hydraulic cutter suction dredger
Dredger LOA 36.0m
Hull size 27.0*8.5*2.5m
Main pontoon 15.4*3.5*2.5m
Side pontoon 24.0*2.5*2.5m
Structure can be dismantle and re-assemble easily, box structure, lower delivery cost
Main engine brand and power 1044kW
Auxiliary engine brand and power 298kw
Harbour generator 40kW/Cummins
Dredging pump Technology
Discharge pipe inner 550mm
Head 57m
Max.
dredging depth 16m
Water flow 4500m³/h
Solid sand capacity 900m³/h
Discharge distance 2000m
Cutter head Dia.
1700mm
Cutter power 170kW
Draught 1.7m
Displacement 302T
Hydraulic control system PLC Siemens
Wire rope pulling force (Lifting winch )*Quantity 80KN *1
Wire rope pulling force (Traversing winch )*Quantity 80KN *2
Operation room adjustable chair, movable side-window, air condition, PLC system, signal lights and floodlights
Total weight 210T
Total fuel oil consumption 201L/H
