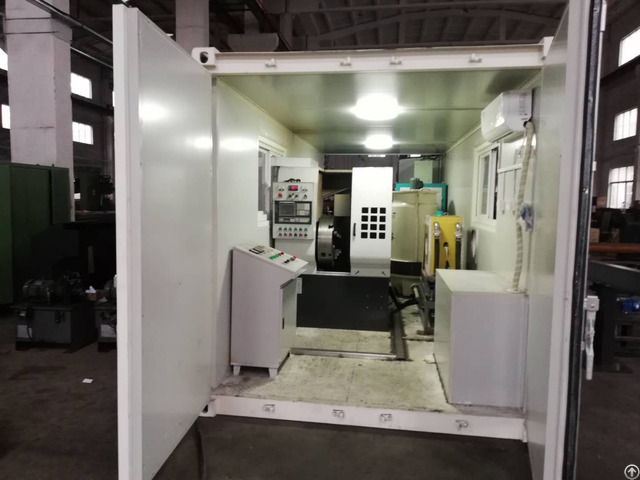

Container Type Hardbanding Machine - China

This hardbanding machine is container type, mobile machine.

The container is double-decker structure, has heat preservation function.

It is equipped with 1.5P air conditioner.

All equipments are fixed in container, convenient for field working of hardbanding welding.

Unit HY-200 HY-260

Spindle center height mm 950 950

Welding length mm 0-200 0～200

Workpiece diameter mm ≤200 ≤260

Spindle number of speeds NO.

无级 无级

Spindle speed r/min 0.2～2 0.2～2

Max.

travel of X-axis mm 320 320

Max.

travel of Z-axis mm 500 500

Noise dB ≤68 ≤68

Wire-feeding wheel interval min 4.5 4.5

Welding wire change interval min 4 4

Wire feeder roller number NO.

2或4 2或4

Welding torch angle adjusting range ° 0～19 0～19

Welding torch swing distance mm 10～35 10～35

Welding torch swing times per minute NO.

/min 50～150 50～150

Machine weight kg 2200 2300
