Coefficient Of Friction Tester Systester - China

Application

Applies to plastic films, laminated films, extrusion films, foils, sheets, rubber, paper, paperboard, wood, brake pad, tyre, windshieldwiper, conveyor belt, hare, metal, carbon rod, catheter, artificial skin etc testing of static coefficient and dynamic coefficient, especially used in food & pharmaceutical industries, quality inspection departments as well as research and development institutions.

Features

1: 2 patents and 2 counts of software copyright registration.

2: Designed based on ISO, GB standard.

3: Highly accurate load cell.

4: Test speed can be set freely through touch screen.

5: Keyboard + touch screen operation.

6: Real color TFT LCD display.

7: Micro-printer built-in.

8: DB9 RS232 communication port.

9: Professional computer software support.

10: Wide range sample thickness test is available.

11: Sled mass can be set through touch screen.

12: Static coefficient, dynamic coefficient test.

13: Overload, limit position protection.

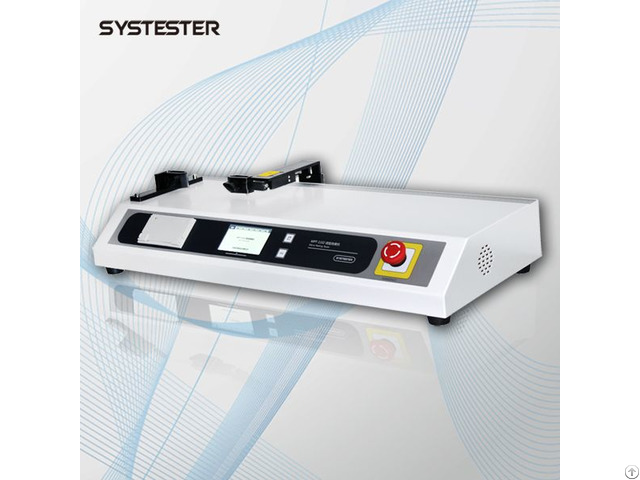

COF-2001 Coefficient Friction Tester

14: One touch to start a new test.

15: Various non-standard test is available.

16: Various analysis functions.

17: Low power consumption.

18: Ethernet communication module is optional.

19: LMIS system is optional(Laboratory Management Information System), easy to share test data.

Technical Indexes

Load cell range 5N, 10N, 30N, 50N, 100N customization

Accuracy 0.5

Max travel distance 400mm

Sled mass 200g, 500g customization

Test speed 100mm/min

Sample thickness 30mm optional

Power supply AC220V 60Hz

Power consumption 21W

Dimension 650mm(L) *340mm(B)* 210mm(H)

Net weight 22kg

Standards

GB 10006, GB/T 17200, ISO8295
