Cnc Woodworking Lathe Automatic Wood Router - China

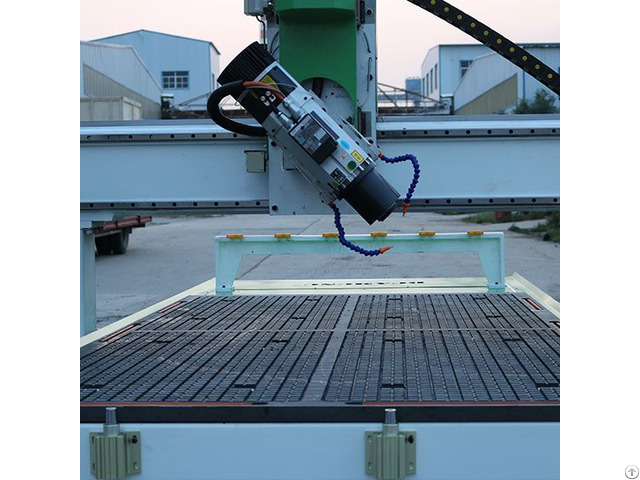

BCM1325D Proffesional CNC Router for Woodworking and Signmaking

# Working area: 1300*2500*200mm|4*8ft

# CE standard

# Italian HSD 9.5KW(12HP) Electrospindle with 10-position Automatic Tool Changer(ISO30)

# 12mm Heavy duty body

# Active safety system

# Helical rack and pinion drivers on X and Y axis, Z axis Taiwan TBI ball screw transmission

# 25mm Heavy-duty Hiwin HG Series linear bearing

# Vacuum table+T-solts

# Taiwan Syntec 6MB (4 Axis)

# Japan Yaskawa servo motor and drivers system

# Delta brand VFD-B variable frenquency drive

# 10 Position Automatic Carousel Tool Changer (options: 12, 14, 16 position)

# Tool Cone Holder-for easy bit changing

# Solid State limit switches

# 3 Years Warranty Parameters Standard Specifications BCM1325D

X, Y, Z Working Area 1300*2500*200mm|4*8ft

Optional Working Area 1300*1300*200mm|4*4ft 1500*3000*200mm|5*10ft 2000*3000*200mm|6*10ft 2000*4000*200mm|6*13ft 2000*6000*200mm|6*20ft


Spindle Power 9kw Italy HSD air cooling spindle

X, Y, Z Traveling Positioning Accuracy ±0.02/2000mm

Table Surface Vacuum table+T-solt table

X, Y, Z Rail and Trasmission X Y axis gear transmission, Z axis TaiwanTBI Ball Screw

Max.

Rapid Travel Rate 90m/min

Max.

Working Speed 70m/min

Cutting thickness According materials

Spindle Speed 6000-24000RPM

Drive Motors Japanese Yaskawa servo motor and drivers

Working Voltage AC380v/50HZ/3 phase

Command Language G code

Operating System Taiwan Syntec 6MB control system

Interface USB

Software Compatibility Option: BCAMPRO/VCarve/VCa rve Pro/ArtCAM/UCANCAM, etc.

Running Environment Temperature: -20℃~45℃ Relative Humidity: 5%~75% BCAMCNC, a professional machinery manufacturing company, with 6000 square meters factory, a highly specialized workforce and more than 10 Patent Technologies has gained a global reputation as one of the most reliable and trusted CNC machinery solution providers.

BCAMCNC comprehensive in the production, design, manufacturing, trade and service of CNC machine like CNC Router, Laser cutting machine, Digital cutting table, Fiber laser cutting machine and Edge banding machine etc., Our wide variety products used in the field of Woodworking, Sign Making, Panel Furniture Production, Jewelry pieces, Packaging etc.
