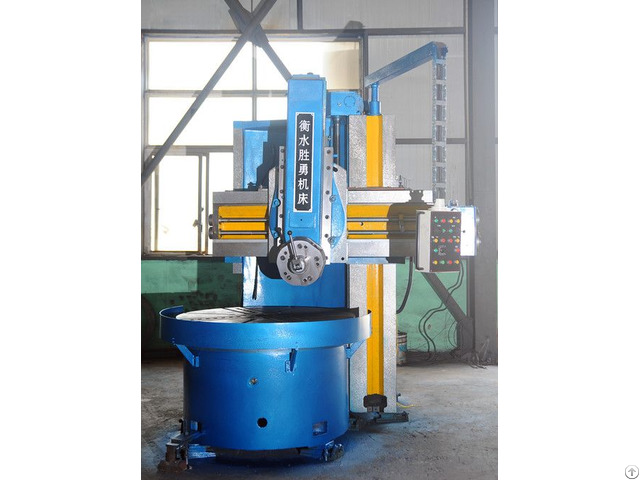

Cnc Vertical Turret Lathe Tool - China
price: 50000.00 Dollar US$
Hengshui Shengyong Heavy-duty Machine Tool Manufacturing Co., Ltd specializes in the researches, developments, manufactures and sells of metalworking machines: Vertical lathe, Vertical turning Lathe, Vertical turret lathe, CNC lathe, Lathe machine, Heavy duty lathes, Plano miller, Milling machine and boring machine etc.
Single column Vertical Lathe machine model:
C5112/C5116/C5118/C512 0/C5123/C5125/C5126
Maximum turning diameter: 1250/1600/1800/2000/2300/ 2500mm
Maximum height of workpiece: 1000/1000/1000/1200/1300/ 1350 mm
Maximum weight of workpiece 3.2 / 5 / 5 / 6 / 8 / 10 t
Double column Vertical Lathe machine model:
C5225/C5232/C5240/C525 0/C5263
Maximum turning diameter: 2500/3150/4000/5 000/6300mm
Table diameter : 2500/3150/4000/5000/6300 mm
Our factory video:
https: //youtu.
be/4xCWym-Fp9k
Technical specification of Automatic cnc vertical turret lathe tool C5125
1 Table diameter 2300mm
2 Maximum turning diameter 2500mm
3 Maximum height of workpiece 1350mm
4 Maximum weight of workpiece 10 t
5 Speed change of table 2.5-80 r/min
6 Working table Step of rotation speed 16
7 Feed rates 0.8-86 mm/min
8 Step 12
9 Horizontal travel of tool post 1600mm
Vertical travel of tool post 915mm
10 Horizontal travel of side cutter bar 750mm
Vertical travel of side cutter bar 1100mm
11 Crossrail travel 850mm
12 Maximum section scale of tool bar 35×45mm
13 Power of main motor 45 kw
Revolutions 1470 r/min
14 Power of Feed motor 1.3/1.7 kw
Revolutions 940/1440 r/min
15 Machine weight 23 t
16 Overall dimensions(L×W×H) 3450×3430×4100 mm
Company Contact:
- Phone: 0086-18330891102
- Address: No. 01, Shengyong Road, Matou Industrial Zone,Fucheng County,, Hengshui City, Hebei Province, China
- Email:
Published date: November 23, 2016
- Business Description: Hengshui Shengyong Heavy-duty Machine Tool Manufacturing Co., Ltd specializes in the researches, developments, manufactures and sells of metalworking machines: CNC lathe , Vertical lathe , vertical turning lathe, vertical turret lathe, Heavy duty horizontal lathe machine, Gantry milling machine, plano miller, boring milling machine and roll turning lathe etc.
If interested, feel free to contact us
