CNC machine with slant bed

CNC machine with rotary pallets

CNC machine with transfer belt

The proposed CNC machine: S36/S350/S400 with slant bed

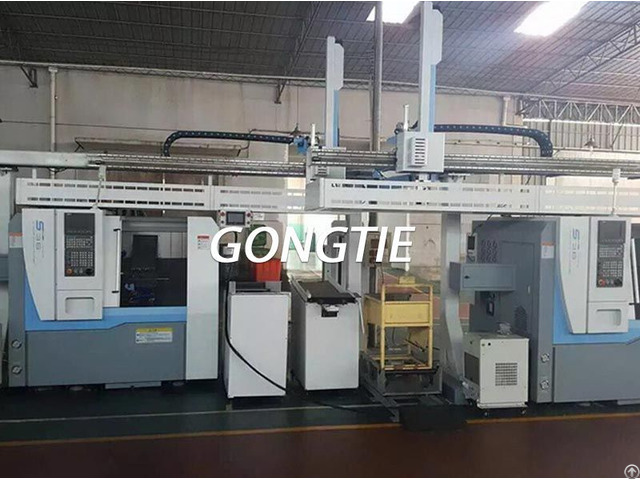

Robot: with the big gantry loader, optional two robots for improving the efficiency

Loading system: 20 station rotary pallets, big tray, transfer belt

Added valued optional facility: air pressure sensor checking with pull chuck Main parameters UNIT S36 S350 Capability Max.

swing diameter mm 460/120 460/120 Max.

turning length mm 325/270 270 Max.

bar through-hole mm 25(35) 40(45)

Axis Stroke X-axis travel mm 420 420 Z-axis travel mm 345 345 Rapid Traverse X/Z-axis m/min 20 20

Spindle Spindle nose size N/A A2-5 A2-5 Spindle hole through diameter mm 48 52(56) Spindle servo motor power kW (asynchronous )5.5/7.5 (asynchronous )7.5/9.5 Spindle speed range rpm 0～5000 0～4500 Work piece clamping method N/A homemade collet 6"/8" hydraulic chuck Toolholder Number of tools PCS 5 5 Toolholder type N/A T-slot blade row T-slot blade row OPT T-slot blade row+live tool T-slot blade row+live tool OPT T-slot blade row+63 turret T-slot blade row+63 turret OPT T-slot blade row+63turret+live tool T-slot blade row+63turret+live tool Toolholder center height in radial mm 62 62 Tool size mm 20*20 20*20(25*25) Boring rod diameter mm 25 25 Accuracy X\Z axis repeating postioning accuracy mm 0.002 0.002 Others Cooling motor capacity L 120 120 Hydraulic box capacity L 60 60 Required electric power kVA 12 14 Height from floor to spindle center mm ≈1070 ≈1070 Overall size(L*W*H) mm 1850*1750*1750 1850*1750*1750 Net weight kg ≈2400 ≈2400
