CNC lathe with rotary work stocker

CNC lathe with inclined bed

CNC lathe with chips conveyor

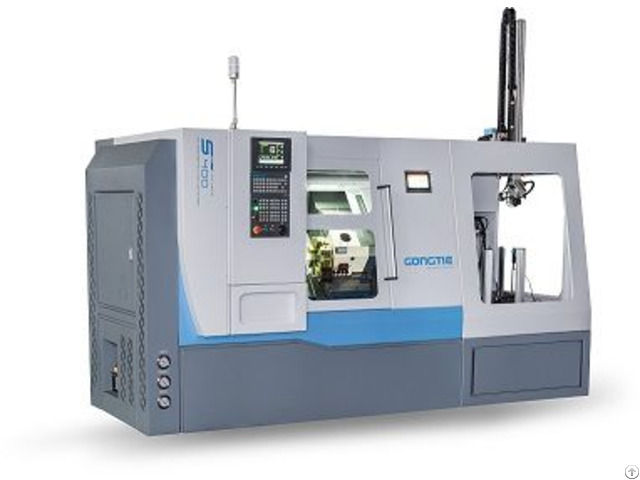

Precision CNC lathe with gantry loader plus 8 station rotary work stocker:

1 - Precision CNC lathe with inclined bed, can improve the machine rigidness.

2 - The CNC lathe with chips conveyor, which can better deal with the chips.

3 - The 8 station rotary work stocker, which can put more raw materials for machining stand-by.

4 - With the gantry loader, which can improve the production efficiency and save labor cost.

5 - The added security switch on the door can better make sure the production security system.

Q series-precise linear guide-way with flat bed in blade row : Q5, Q7, Q5C, Q7C

S series-precise linear guide-way with flat bed in blade row : S36, S350

with the features of high precision.

high speed.

high efficiency, is the ideal selection for substituting hard rail lathes and imported lathes.

* High precision: importing components from Japan and Taiwan through the advanced assembly and inspection technology, realizing the precise turning with tolerance of μ level.

* High speed: more than 5000RPM for spindle, rapid traverse 20m/s, to reach the high speed machining.

*High-efficiency: with the concept of technique innovation and application oriented, and sustainability improve the overall performance, to make the processing more efficiency.

* Stability: high quality requirement and strict selecting for all the components, to make the machine performance more stable.

(Synchronous electric spindle)- the best selection for substituting the imported lathes.

* More precision: the complete Synchronous servo configuration for the spindle and the X/Z axis, makes the processing accuracy get a new break through.

* Higher speed: the superior Synchronous electric spindle make the spindle perform higher, faster, and more stable.

* More efficiency: the complete, Synchronous control for the core parts (all the axis), makes the processing efficiency better.

In this technical solution, we use gantry loader plus one 8-position stocking bin to realize the automatic processing and picking paratypic and small disc - type work pieces.

Main parameters UNIT Q5 Q7 Q5C Q7C

Capability Max.

swing

diameter mm 400/98 400/98 400/98 400/98 Max.

turning

length mm 200 300 200 300 Max.

bar

through-hole mm 20(25) 26(35) 20(25) 26(35)

Axis

Stroke X-axistravel mm 280 320 280 320 Z-axistravel mm 240 315 240 315

Rapid

Traverse X/Z-axis m/min 20 20 20 20

Spindle Spindle

nose size N/A A2-4 A2-5 A2-4 A2-5 Spindlethrough holediameter mm 35(37) 48 35(37) 48 Spindle servo motor power kW (asynchronous) 2.2/3.7 (asynchronous) 3.7/5.5 synchronous electric spindle synchronous electric spindle Spindle speed range rpm 0～5000 0～5000 0～6000 0～6000 Work piece clamping method N/A homemade collet homemade collet homemade collet homemade collet

Tool

holder Numberoftools PCS 5 5 5 5 Toolholder

type N/A Dovetail row of knives Dovetail row of knives Dovetail row of knives Dovetail row of knives OPT T-slot blade row+live tool T-slot blade row+live tool T-slot blade row+live tool T-slot blade row+live tool Toolholder

center height

in radial mm 50 50 50 50 Tool size mm 16*16 16*16 16*16 16*16 Boring rod diameter mm 25 25 25 25

Accuracy X\Z axis repeating postioning accuracy mm 0.002 0.002 0.002 0.002

Others Cooling motor

capacity L 120 120 120 120 hydraulic box

capacity L 60 60 60 60 Required electric power kVA 7 8 7 8 Height from floor to

spindle center mm ≈1070 ≈1070 ≈1070 ≈1070 Overall size

(L*W*H) mm 1500*1250*1650 1650*1300*1650 1500*1250*1650 1650*1300*1650 Net weight kg ≈1200 ≈1700 ≈1200 ≈1700

Standard tool box, instruction, manual, cooling system, lighting system, lubricating system

Optional collet, chuck, foot switch, programmable blowing function, precision c, axial division, living tool, auto door, loading & unloading system, industrial robot, auto bar feeder, parts catching device, chip conveyor, auto detecting system, auto

tool compensation system, high pressure cooling system More Product Please View Hifactory.
