CNC lathe for small shafts

CNC lathe for small shafts design

CNC lathe with vibration pan supplier

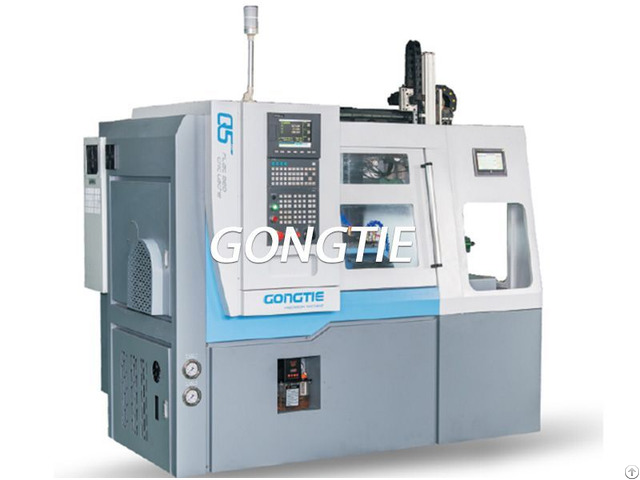

Q series-precise linear guide-way with flat bed in blade row : Q5, Q7, Q5C, Q7C

Q5, Q7, with the features of high precision.

high speed.

high efficiency, is the ideal selection for substituting hard rail lathes and imported lathes.

* High precision: importing components from Japan and Taiwan through the advanced assembly and inspection technology, realizing the precise turning with tolerance of μ level.

* High speed: more than 5000RPM for spindle, rapid traverse 20m/s, to reach the high speed machining.

*High-efficiency: with the concept of technique innovation and application oriented, and sustainability improve the overall performance, to make the processing more efficiency.

* Stability: high quality requirement and strict selecting for all the components, to make the machine performance more stable.

Q5C, Q7C, (Synchronous electric spindle)- the best selection for substituting the imported lathes.

* More precision: the complete Synchronous servo configuration for the spindle and the X/Z axis, makes the processing accuracy get a new break through.

* Higher speed: the superior Synchronous electric spindle make the spindle perform higher, faster, and more stable.

* More efficiency: the complete, Synchronous control for the core parts (all the axis), makes the processing efficiency better.

In this technical solution, we use one vibration pan to combine the precise Q series CNC lathe to realize the processing of paratypic and small shafts or pan - type work pieces.

Main parameters UNIT Q5 Q7 Q5C Q7C

Capability Max.

swing

diameter mm 400/98 400/98 400/98 400/98 Max.

turning

length mm 200 300 200 300 Max.

bar

through-hole mm 20(25) 26(35) 20(25) 26(35)

Axis

Stroke X-axistravel mm 280 320 280 320 Z-axistravel mm 240 315 240 315

Rapid

Traverse X/Z-axis m/min 20 20 20 20

Spindle Spindle

nose size N/A A2-4 A2-5 A2-4 A2-5 Spindlethrough holediameter mm 35(37) 48 35(37) 48 Spindle servo motor power kW (asynchronous) 2.2/3.7 (asynchronous) 3.7/5.5 synchronous electric spindle synchronous electric spindle Spindle speed range rpm 0～5000 0～5000 0～6000 0～6000 Work piece clamping method N/A homemade collet homemade collet homemade collet homemade collet

Tool

holder Numberoftools PCS 5 5 5 5 Toolholder

type N/A Dovetail row of knives Dovetail row of knives Dovetail row of knives Dovetail row of knives OPT T-slot blade row+live tool T-slot blade row+live tool T-slot blade row+live tool T-slot blade row+live tool Toolholder

center height

in radial mm 50 50 50 50 Tool size mm 16*16 16*16 16*16 16*16 Boring rod diameter mm 25 25 25 25

Accuracy X\Z axis repeating postioning accuracy mm 0.002 0.002 0.002 0.002

Others Cooling motor

capacity L 120 120 120 120 hydraulic box

capacity L 60 60 60 60 Required electric power kVA 7 8 7 8 Height from floor to

spindle center mm ≈1070 ≈1070 ≈1070 ≈1070 Overall size

(L*W*H) mm 1500*1250*1650 1650*1300*1650 1500*1250*1650 1650*1300*1650 Net weight kg ≈1200 ≈1700 ≈1200 ≈1700

Standard tool box, instruction, manual, cooling system, lighting system, lubricating system

Optional collet, chuck, foot switch, programmable blowing function, precision c, axial division, living tool, auto door, loading & unloading system, industrial robot, auto bar feeder, parts catching device, chip conveyor, auto detecting system, auto

tool compensation system, high pressure cooling system

vibration device the vibration pan is customized according to the detail requirement

and the work pieces customer provided.
