Cnc 0 3 2 5mm Spring Wire Forming Making Machine - China

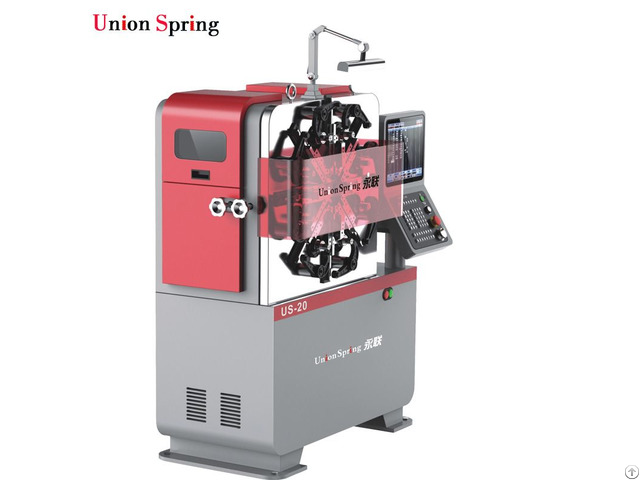

1 - US-20 computer spring forming machine adopts Taiwan computer control system and Japanese imported servo motor, with convenient and fast operation, high speed and high precision 2 - It is divided into camshaft, feed shaft, rotary shaft, take-up (optional accessories), and the four axes can run synchronously.

3 - There are eight groups of sliders, cams and camshafts in the cam section.

The cam plate is fixed on the rotating shaft and can be screwed forward and backward, and used to push the movement of the slider.

There are three ways of mechanical action: extrusion, stamping and forming 4 - The feeding system is installed on the back of the machine horizontally.

There are 2 sets of feeding bobbins, each pair of feeding reels is a pair.

The US-20 has only a pair of feeding reels with a thread diameter of 1.0 or less, and can be used with more than 1.0 pairs.

Reel.

Computer control wire length, the minimum wire feed unit is 0.01mm.

Features: wear, minimal noise, high accuracy with the camshaft, rotating shaft.

5 - The rotating mandrel can rotate forward and backward, and the curling device is installed on the slide, which can realize multi-rotation positive and negative rotation 6 - The rotating mandrel can rotate forward and backward, and the curling device is installed on the slide, which can achieve multi-rotation positive/negative rotation 7 - US-20 machine can produce all kinds of tension spring, pressure spring, tower spring, double torsion spring, flat spring and other opposite springs.

Can be used in lighting, electronics, toys, home appliances, sports equipment, automotive and other industries need precision springs.
