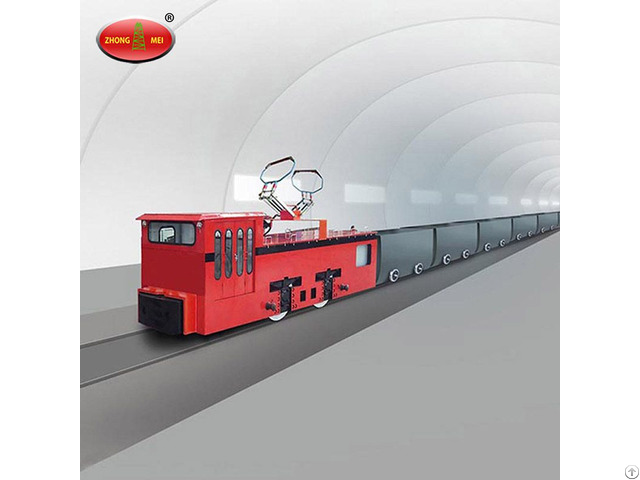

9 - CJY14/6GP 14T Underground Trolley Overhead Line Electric Mining Locomotive

Keywords: coal mine locomotive, trolley electric locomotive, underground overhead line electric locomotive, trolley locomotive for sale, electric locomotive, locomotive electric

Introduction of CJY14/6GP 14T Underground Trolley Overhead Line Electric Mining Locomotive

CJY14/6GP 14T Underground Trolley Overhead Line Electric Mining Locomotive is a new product specially designed for large mine, it has the properties of small overall dimension, short wheelbase, small turning radius, fast speed, and big traction etc.

The electric locomotive adopts V type rubber spring, can withstand vibration and impact from longitudinal, transverse and vertical direction, the wing is made of rubble elastic wing plate to ensure the product has small impact when pass unloading hole.

Features of CJY14/6GP 14T Underground Trolley Overhead Line Electric Mining Locomotive

Great tractive effort;

Heavy duty loading capacity;

Smoothly climbing and moving;

Safe braking control system;

Reliable and easy operation;

Simple maintenance 25-30%energy saving compared to DC driving type Less emission;

Eco-Friendly;

Parameter of CJY14/6GP 14T Underground Trolley Overhead Line Electric Mining Locomotive

Specifications CJY14/6GP CJY14/7GP CJY14/9GP

Adhesive Total Weight (t) 14 14 14

Track Gauge (mm) 600 762 900

Wheelbase (mm) 1700 1700 1700

Wheel Diameter Over Tread 680 680 680

Coupler Height over Steel Rail(mm) 320/430 320/430 320/430

Min Curve radius (m) 15 15 15

Pantograph Operation Height (mm) 1800-2400 1800-2400 1800-2400

Braking Method Mechanical&Electrical +Air Mechanical&Electrical +Air Mechanical&Electrical +Air

Max Tractive Effort (KN) 38.5 38.5 38.5

Max Speed (km/h) 25 25 25

Rated Speed (km/h) 10 10 10

Power of Traction (kw) 2*37 2*37 2*37

DC Input Power Voltage DC550 DC550 DC550

Transmission Dual Bevel Gearing Dual Bevel Gearing Dual Bevel Gearing

Controller Resistance or IGBT Resistance or IGBT Resistance or IGBT

Over all Dimensions (mm) 5250*1060*1750 5250*1340*1750 5300*1340*1750

Service & Application Mucking in Mining&Tunneling Mucking in Mining&Tunneling Mucking in Mining&Tunneling
