Bone Skin Fish Collagen Evaporative Sterilizer Processing Equipment - China

Model：XZMJ

Characteristics:

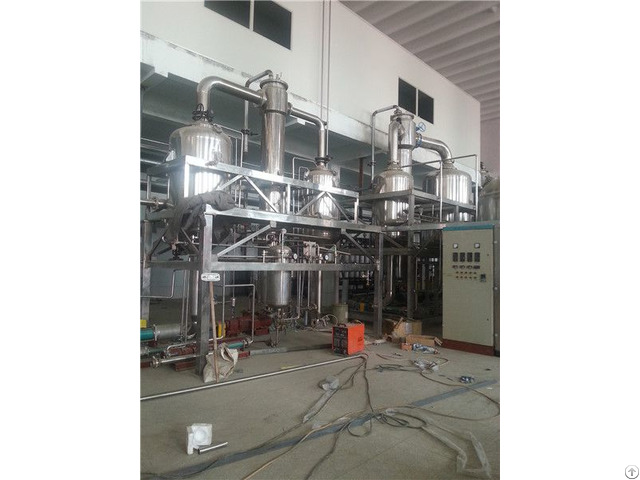

This plant is unitized with an evaporator and sterilizer, which has combined function of increase concentration and sterilization.

Gelatin liquor are evaporated to higher concentration more than 30% by force circulating evaporator and then heated up to 140℃ and maintained for 4-6 seconds in DSI unit.

Capacity: Gelatin 1000T/Y-3000T/Y

Control Mode: automatic control (feed rate, level, steam pressure, temperature)

The Main Fittings:

Inlet balance tank, plate heater, flash evaporator tank, condenser, pre-heater, T-type sterilizer, U-type holding tube, sterilization flash tank

Feed pump, circulation pump, outlet pump of flash evaporator, outlet pump of sterilizer, vacuum pump, frame structure, panel

The equipment is made of S.S.304 and polished.

Company Contact:

• Posted By: Tianjin Wanfeng Chemical Engineering Equipment Co Ltd

• Phone: 86-22-26429421

• Address: Panzhuang Industrial Zone， Ninghe District， Tianjin, tianjin , tianjin , China

• Email:

• Website: http://www.gelatinequipment.cn

• Business Description: Contact person: Rose Liang

  Phone: +86 13820752757

  Email: zhurong tj@126 - com

  sales-wanfeng@ gelatinequipment.

  cn

  Skype ：+86 13820752757

  Whats app: +86 13820752757

  Website: www.

  g elatinequipment.

  cn

  Compa ny Description:

  Tianjin Wanfeng Chemical Engineering Equipment Co., Ltd was founded in 1995 and is located in Panzhuang Industrial Zone, Ninghe District, Tianjin, China.

  It has land cover 26500㎡ and building area is 13900㎡, as a professional company of designing and manufacturing gelatin equipment, we supply full set of gelatin production line, which are mainly including Treatment Washing and Neutralization equipment, Extractor, Membrane filter, Four-effect evaporator, Evaporative sterilizer, Band dryer, Votator, Dehumidifier, Filter, Grinder, Gelatin Blender , Plant of Gelatin Grinder Conveyor , Ion-exchange system , Vacuum dryer , Cutter and etc.

  We also provide chain service of design, installation, testing and training.

  We have professional engineers who have accumulated rich experience in gelatin production, with in-depth experience in manufacture of gelatin equipment.

  We have attained an outstanding position in supplying reliable advanced equipment for gelatin industry.

  Up to now, company has obtained 8 national patents, 1 of them is national invention patent, and authorized by Chinese Government as High-New Technical Enterprise.

  The equipment have been exported to India, Australia, Thailand, Malaysia and Egypt.

  Our customers come from all over China, as well as the famous gelatin company of the world, such as Gelita (Germany), Russelot (America), Sterling (India), Gelic (Japan), PB (Belgium), etc.
