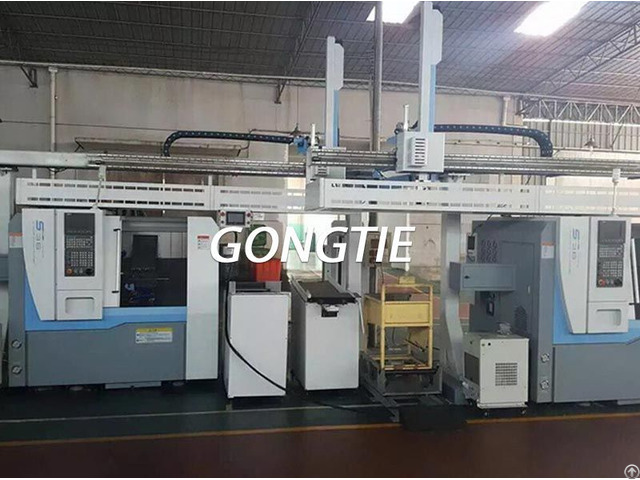

Automatic CNC Lathe with Gantry Loader

Precise, stable and efficient S36 and S350 series, is a high competitive machine for realizing the precision machining, heavy cutting.

* precision : components importing from Taiwan and Japan for the main configuration, through the installation and testing of advanced technology, can achieve the μ level of precision turning.

* stability : high rigid structure one casting, make more stable.

* high precision turning effectively combination of precision and rigidity, make the process more efficient.

Synchronous electric spindle S36C and S350C series, is the best choice to replace the imported models

* more precise : the synchronous servo spindle and feed shaft configuration, which makes the processing accuracy into higher realms.

* more stable : the superior performance of the synchronous electric spindle play a higher performance faster and more stable.

* more efficient : core components (each axis) of the synchronous control, will bring higher machining efficiency.

Main parameters UNIT S36 S36C S350 S36D S350D

Capability Max.

swing diameter mm 300 300 350 300 350 Max.

turning diameter mm 270 270 350 270 350 Max.

turning length mm 330 330 420 330 420 Max.

bar through-hole mm 26(35) 26(35) 40 26(35) 40

Axis Stroke X-axis travel mm 420 420 420 330 330 Z-axis travel mm 330 330 330 420 420

Rapid Traverse X/Z-axis m/min 20 20 20 20 20

Spindle Spindle nose size N/A A2-5 A2-5 A2-5 A2-5 A2-5 Spindle servo motor power kW 3.7/5.5 3.7/5.5synchro

nous electric spindle 5.5/7.5 3.7/5.5 5.5/7.5 Spindle speed range rpm 0～5000 0～5000 0～4500 0～5000 0～4500 Work piece clamping method N/A 36 collet

(5'hydraulic chuck) 36 collet

(5'hydraulic chuck) 6' hydraulic

chuck(42 collet) 36 collet

(5'hydraulic chuck) 6' hydraulic

chuck(42 collet)

No.

of tools Number of tools PCS 5 5 5 3+8 3+8

Toolholder Toolholder type N/A T-slot blade row+spindle head T-slot blade row+spindle head T-slot blade row+spindle head T-slot blade row+63turret+s pindle head T-slot blade row+63turret+spi ndle head Toolholder center height in radial mm 62 62 62 62 62 Tool size mm 20*20 20*20 20*20(25*25) 20*20 20*20(25*25) Boring rod diameter mm 25 25 25 25 25

Accuracy X\Z axis repeating postioning accuracy mm 0.002 0.002 0.002 0.002 0.002

Others Cooling motor capacity L 120 120 120 120 120 hydraulic box capacity L 60 60 60 60 60 Required electric power kVA 12 12 14 15 15 Height from floor to spindle center mm ≈1070 ≈1070 ≈1070 ≈1000 ≈1000 Overall size(L*W*H) mm 1850*1750*1750 1850*1750*1750 1850*1750*1750 1850*1750*1750 1850*1750*1750 Net weight kg ≈2400 ≈2400 ≈2400 ≈2600 ≈2600

Standard configuration: Tool box, instruction book, operational manual, cooling system, lighting system, lubrication system, chips cleaner, hydraulic collet(chuck), foot switch.

Optional configuration: program control blowing function, precision C axis dividing, power spindle head, automatic door, loading and unloading system, industrial robotic, automatic bar feeder, receiving device for bar materials, automatic detection system, automatic cutter radius compensation system, high-pressure cooling system.
