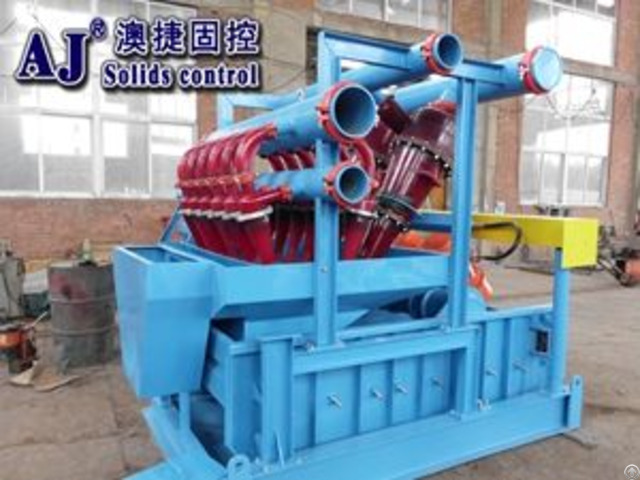

Ajq Series Mud Cleaner - China

The mud cleaner/ hydrocyclone cleaner includes a desander, a desilter, a pressure gauge, a cyclone, a underflow groove, a drilling fluid vibrating screen, a support and a base, and is characterized in that, a butterfly valve is provided between main liquid inlet pipe and liquid outlet pipe of desander and desilter, the base is provided with the sliding groove, the vibrating screen is mounted on the sliding groove, and the cyclone is provided with an automatic desanding device and a underflow outlet regulating device.

The mud cleaner is compact, easy to be used and maintained and reliable, and can eliminate harmful solids in the drilling fluid rapidly, improve the performance of drilling fluid, and meet the requirements of high-pressure jet drilling process.

The cleaner also very popular in the Trenchless, No dig, Sludge treatment system.

Features of mud cleaner:

● Matched with technologically-advanced vibrating screen.

● Desanding and desilting cyclone uses 100% polyurethane material.

● Clamp desilting cyclone is equipped with stainless steel ball valve, easy to be maintained.

● Compact structure

● Damping spring uses high-performance spring material to prolong its service life.

● Vibration motor: Italy Oli, IEC EX and ATEX explosion-proof standard are optional.

● Screen angle can be adjusted in operation mechanically, with reliable performance.

● Quantity of cyclone is optional.

Benefits of Aojie Mud cleaner

·Compact footprint and light

·User-friendly

·Easy to installation

·Low cost on operation and maintenance.

·Low noise

·Decrease drilling cost

·Controlling well on drilling mud leakage

·Flexibility on treating capacity

Company Contact:

• Posted By: Tangshan Aojie Petroleum Machinery Equipment Make Co., Ltd

• Phone: +86-315-2648099

• Address: No.2 Jingxi Road, Lunan District, Tangshan City, Hebei , China

• Email:

• Website: http://www.ogemsolidscontrol.com

• Business Description: Company profile

  Tangshan Aojie Petroleum Machinery Equipment Manufacturing Co., Ltd. (“Aojie Solid Control” for short) is a modern manufacturer integrating R&D, production and sale.

  Our service items include solid control equipment, solid control system, etc.

  Our scope of business covers solid-liquid separation industries, such as petroleum drilling solid control system, trenchless mud purification system, gas coal seam exploration mud purification system, shield mud purification system, desilting purification system, pilework solid-liquid separation, environmental protection industry, etc.

  Aojie Solid Control produces and deals in mud purification system, drilling fluid vibrating screen, mud cleaner, desander, desilter, vacuum degasser, centrifuge, shear pump, sand pump, gas-liquid separator, electronic ignition device, mud mixer, jet mud mixer, mud gun, mud tank, submerged slurry pump, solid control equipment accessories, etc.
