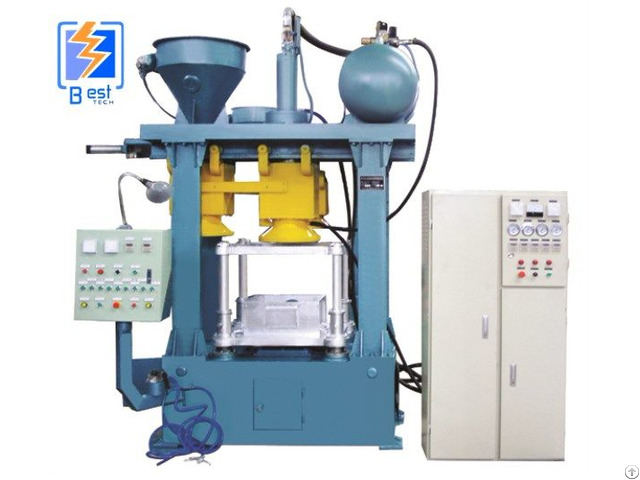

Air Compressor Feed For Sand Core Shooting Shell Machine - China
price: 8000.00 Dollar US$
The characteristics of core shooting machine: (1) machine adopts PLC control (2) drive mode is pneumatic drive or hydraulic drive, it is according to the customer`s requirements.
(3) Machine can electrical heating, automatic temperature control (4) It is full automatic Technical parameter: Model Z955K Z956K Z957K Z958K Max Dimensions of mold board(mm) 550X400 650X400 750*580 850*600 Cover half thickness(mm) 150 180 180 200 Movable mold mini thickness(mm) 200 200 200 250 Compound die process (mm) 400 400 400 400 Max sand core weight(kg) 20 20 25 30 Sand hopper capacity(kg) 200 200 250 250 Heating mode Electric heating Electric heating Electric heating Electric heating Electric heating power(kw) 25 30 40 50 System pressure(Mpa) 0.55-0.7 0.55-0.7 0.55-0.7 0.55-0.7 Operation mode Manual/auto Manual /auto Manual /auto Manual /auto
Company Contact:
- Posted By: Qingdao Bestech Machinery.com
- Phone: +8613780658121
- Address: shuangzhu road , Qingdao , Shandong , China
- Email:
- Website: http://www.besttechmachinery.com
Published date: January 6, 2019
- Business Description: Qingdao bestech machinery., Ltd is a collection of scientific research , design , manufacture, installation and debugging and technical advisory services and the intergration of the professional casting equipment comapanies .
the main production casting machinery products : dust sand cleaning three series .
contains the bag type dust collector , filter cartridge dust collector , shot blasting machine (crawler shot blaster , rotating table shot blaster, hook type shot blaster , through type shot blaster , steel pipe shot blaster), wear parts , such as the impeller body nearby 20 varieties .
