Wedge Wire Screen Filter Cartridge - China

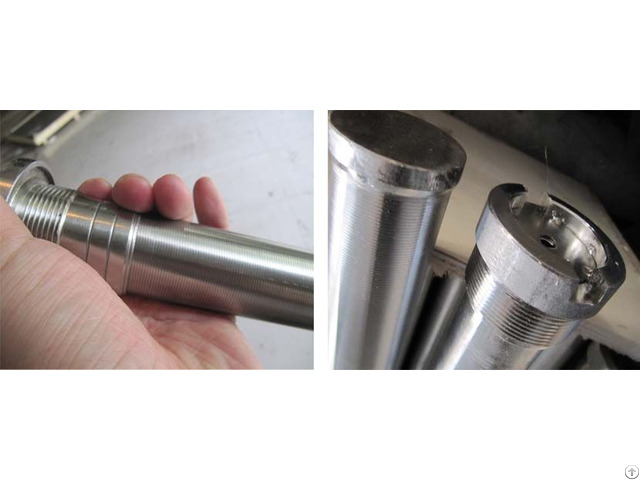

wedge-wire filter cartridge Wedge wire filter candle

It is made of V-shaped wire (surface wire) and support wire.

The surface wire is connected with the support rod by electric welding.

The strict continuous integrity makes the all-welded wire-wound screen have the minimum capacity to withstand high pressure., belongs to the form of surface layer filtering.

These filter elements are highly precise, have small slit openings and excellent roundness.

The slot tube can be equipped with necessary end caps, flanges, threaded fasteners and the like.

Wedge wire wound screen parameters:

Gap (mm): 0.10, 0.15, 0.2, 0.25, 0.30-3

Opening area up to 60%.

Material: low carbon steel, low carbon steel galvanized, plastic spray, stainless steel (304, 316, etc.

)

Length: maximum length is 6 meters

OD from: 25mm to 800mm

Connection form: groove connection or threaded connection Product advantages of Wedge wire filter candle?

The Wedge wire filter candle has good roundness, small gap uniformity error, minimum gap control of 20 microns, and tolerance control of 5 microns.

The product is not easy to be blocked, has a firm structure, high temperature resistance, corrosion resistance, good mechanical properties, long service life, safety and reliability, etc.

It can be used for filtration of various media.

Precise V-wound wire with self-cleaning function, which is good for backwashing and not easy to block.

Smooth surfacewithout edges and corners, excellent roundness

Uniform gap, minimum gap control at 20 microns, error 0.005mm, can be customized according to customer’s requirements

Diversified structure, various filtering directions, flexible customized production according to customer requirements, the filtering direction can be adjusted according to customer requirements, from inside to outside or from outside to inside.

The skeleton structure of self-supporting welding has high strength and large pressure bearing

Corrosion resistantand long service life

Material selection: stainless steel 304, 316L, 904L, titanium, Hastelloy

Company Contact:

• Posted By: hengshui guangxing screens Co., Ltd

• Phone: 00863187086206

• Address: NO.2589 WEST SHENGLI ROAD , HENGSHUI,CHINA , hengshui , China

• Email:

• Website: http://www.guangxing-screens.com

• Business Description: Guangxing screen company is a professional manufacturer and exporter, well known for its excellence in customer services and its leadership in technology.

  Apply ourselves to customers worldwide, guangxing is highly specialized in wedge wire screen and other related wedge wire filtration products used in various industries.

  Guangxing screen company is a manufacture who has been specialized in the production and export of different kinds of filters Since 1986, such as stainless steel water well screen, sand control screen , oil well screen, rod based pipe screen, candle filter elements .

  And our products have a wide range of uses like water treatment, coal mining , food processing, paper making.

  After years of effort, our products are selling well all over the world, such as Europe, USA, Southeast Asia, Middle-East, etc, and enjoys an excellent reputation internationally.

  For the continuous improvement, we can now get to a new level of high quality wedge wire filtration and separation products
