Wcb Flange Ends Fuel Gas Y Strainer - China

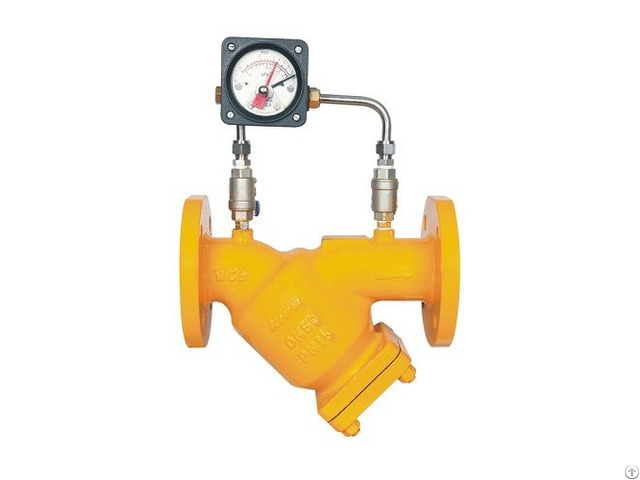

Product Introduction The KRYG1B4F strainer is an indispensable device in the pipe system that conveys gas and other media.

It is generally installed at the inlet of gas equipment to remove the impurities in natural gas, liquefied petroleum gas and other media, protecting the valves, flow meters and pressure control devices, and so on.

KMO's strainer has advantages of advanced structure, low resistance and convenient sewage discharging.

The applicable media includes liquefied gas and natural gas.

According to user needs, the filter element is made of stainless steel with good firmness and durability.

The meshes of the filter screen can be set according to user’s needs, generally select-able between 80~700 meshes.

The connection ways include flange and screw.

The strainer can be optionally equipped with a differential pressure gauge, which can remind the user when it needs to clean.

Body Material: WCB(more details please check the follow drawing) Applicable Medium: gas Diameter: DN15-600mm Nominal Pressure: 1.6~16MPa Design Temperature: -29ºC~ +60ºC Connection Type: flange Filter Accuracy: 50 meshes or customer requirements Design Standard: SH/T3411 Structure Standard: SH/T3411 Flange Standard: GB /JB / HG / DIN Features of Product The product has some features such as small body shape, high filtration accuracy, good filtration effect, low cost, short drainage time, and easy to install and maintain.

For small models, it only takes 5-10 minutes to install.

Company Contact:

• Posted By: Wenzhou KMO Fluid Equipment Co.,Ltd

• Phone: +8618057776809

• Address: Yongjia Dong'ou Fort Street, Industrial Zone, Wenzhou , Zhejiang , China

• Email:

• Website: https://www.gasballvalve.com/products

• Business Description: WENZHOU KMO FLUID EQUIPMENT Co., LTD. is a professional R&D, production and sales enterprise.

  It is located in Oubei Town, Yongjia County, Wenzhou City, which is the "Hometown of Pumps and Valves in China", it was established in 2015 with a registered capital of 11 million yuan.

  , the products are selling well all over the country.

  The main products are gas Y strainer, fuel gas cartridge filter, automatic backwash filter, fuel gas anti-static ball valve, fuel gas fire anti-static ball valve, pneumatic ball valve, fuel gas emergency solenoid valve, etc.

  The nominal diameter of the ball valve is 6mm～800mm (1/4″-32″), the nominal pressure is 0.1Mpa～32Mpa (150Lb-2500Lb), and the design temperature is -196℃～540℃.

  The main materials are WCB, aluminum alloy, 304, 304L, 316, 316L, 20#, 2205, fluorine-lined rubber and other products.

  Product connection standards can be based on user requirements, including GB, ANSI, DIN, JIS, etc.
