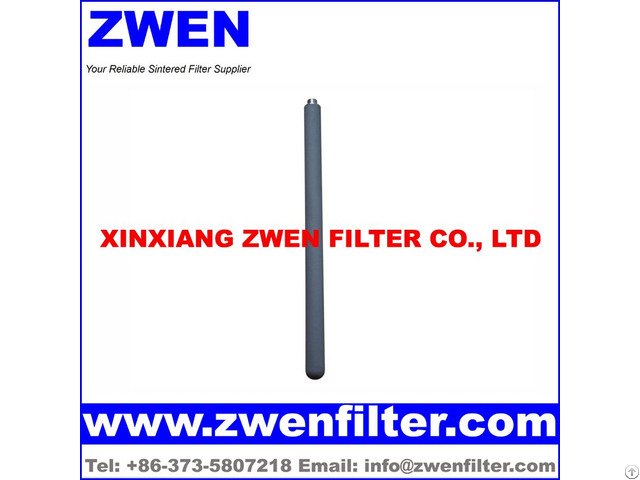

Ti Sintered Powder Filter Cartridge - China

Ti Sintered Powder Filter Cartridge Technical Data

Raw Material: Ti

Filter Rating Range: 0.22 Micron ~ 100 Microns

Filter Efficiency: > 99.99 %

Operation Temperature: ≤ 300 ℃

Outside Diameter: 12 mm, 18 mm, 20 mm, 25 mm, 30 mm, 35 mm, 40 mm, 50 mm, 60 mm, 65 mm, 70 mm, 80 mm, 90 mm, 100 mm, 130 mm

Length: 10'' (254 mm), 20'' (508 mm), 30'' (762 mm), 40'' (1016 mm) or others Gasket: PTFE, Viton, Silicone, Buna-n, EPDM

Connector/Fitting/Adap tor:

1 - DOE

2 - Code 2 (226+Flat End)

3 - Code 3 (222+Flat End)

4 - Code 7 (226+Fin End)

5 - Code 8 (222+Fin End)

6 - Thread (NPT, BSP, G, M, R)

7 - Flange

8 - Special customization Ti Sintered Powder Filter Cartridge Feature

1 - Ti sintered powder filter cartridge is biocompatible

2 - Ti sintered powder filter cartridge has high porosity

3 - Ti sintered powder filter cartridge is good for backwash

4 - Ti sintered powder filter cartridge has high mechanical strength

5 - High filter efficiency

6 - High dirt holding capacity

7 - High temperature resistance

8 - High corrosion resistance

9 - Long service life Application

1 - Steam filtration (aseptic package, breweries, chemicals, dairies, electronics, food and beverage, pharmaceuticals, plastic)

2 - High temperature gases filtration (highly aggressive gases, nitrogen, carbon dioxide, compressed air, tank ventilation)

3 - High temperature liquid filtration (chemicals, cosmetics, paints, salt and seawater, syrups, coolants, food and beverage, pharmaceuticals, solvents, water)

4 - Catalysts powders recovery

5 - Precoat support filtration

Company Contact:

• Posted By: Xinxiang Zwen Filter Co., Ltd

• Phone: +86-373-5807218

• Address: NO.425, XINHUI ROAD, MUYE DISTRICT, XINXIANG , HENAN , China

• Email:

• Website: https://www.zwenfilter.com

• Business Description: Xinxiang Zwen Filter Co., Ltd has advanced sintering equipment, advanced welding equipment and a high level of skilled workers.

  Has passed iso 9001: 2008 quality management system and sgs audit test.

  Our main markets are european market and north american market.
