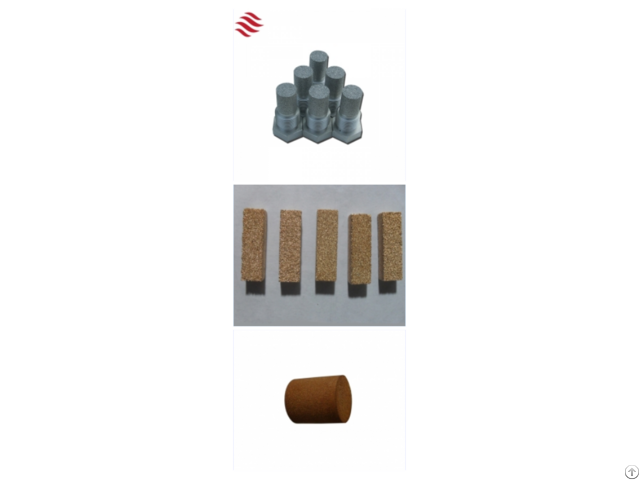

Stainless Steel And Copper Powder Sintered Filter Element - China

Stainless steel powder sintered filter core is made of stainless steel powder by pressing through the mold, sintering at high temperature and forming as a whole.

Stainless steel powder sintered filter core is made of stainless steel powder by pressing through the mold, sintering at high temperature and forming as a whole.

It has high mechanic strength, high temperature resistance, anti-corrosion, even porosity, good permeability, washable and recycling use.

It can be welded and processed with other machinery.

A porous metal sintered filter element with a wider filtration rate range can be produced by adjusting the powder particle size and technique process.

It is widely applied in the gas-liquid filtration and separation in the fields of catalyst recovery, chemical, pharmacy, drinks, food, metallurgy, petrol field, environmental fermentation.

In addition, it can remove the dust of various types of gas and steam, remove bacteria, eliminate oil mist, reduce noise, trap flame and buffer gas, etc.

Features：

1, Stable shape, anti-shocking, alternating load capacity is better than other metal filter materials.

2 - Good permeability, stable separation function.

3 - Excellent unloading strength, suitable for high temperature, high pressure and strong corrosive environment.

4 - Especially suitable for high temperature gas filtration.

5 - We can customize various shapes and filtration rates with various connection methods according to customer’s demand.

Product Features:

Anti-acid, anti-alkali, high temperature resistance, low temperature resistance, fire retardant, anti-static.

Working Environment: Nitric acid, sulfuric acid, acetic acid, oxalic acid, phosphoric acid, 5% hydrochloric acid, molten sodium, liquid hydrogen, liquid nitrogen, hydrogen sulfide, acetylene, water vapor, hydrogen, gas, carbon dioxide gas and other environmental application.

It has different porosity (28％—50％), pore diameter 4um—160um, filtration rate 0.2um—100um.

Channel crisscross, high temperature resistance, resistance to heat and cold.

Anti-corrosion, suitable for various corrosive mediums such as acid and alkali, especially suitable for sulphur-containing gas filtration.

It is also applied to high pressure environment, easy to be welded, unloading, even porosity, ensuring the stable filtration features, good regeneration function and washable, the filtration efficiency can be recovered to 90% above after regeneration and repeatedly washing.

Copper particle sintered filter element is a spherical powder produced by atomization through high temperature sintering technology.

The spherical powder can still maintains round shape because it is not affected by the external powder and the temperature is controlled strictly within a range.

The porosity is formed between particles and the porosity and size can be optional.

Technical Features Of Copper PowderSintered Filter Element: Technical features of copper powder sintered filter element:

1, High filtration accuracy, stable porosity, low pressure loss, the pore will not change within different pressure range.

It can effectively remove the suspended matter and micro particles, high filtration efficiency and accuracy, good purification effect.

2, High porosity, smooth and even, small initial resistance, easy to blow reversely, strong regeneration, long cycle life, especially used for gas separation and treatment, 3, High mechanical strength, solid hardness, good plasticity, anti-oxidant, anti-corrosion, no support framework needed, simple installation, application and maintenance, can be welded, connected and processed mechanically.

4, Copper powder sintered filter element is shaped once, no need cut, high efficiency of raw material utilization, greatly saving the material cost, especially suitable for big batch and complicated structure elements.

5, Filtration rate: 5~50μm.

Application Field:

Pneumatic components, lubricating oil, fuel oil and hydraulic pressure system of medium purification and flow limit, compressed air deoiling purification, crude oil defrosting filtration, nitrogen and hydrogen (sulfur free) filtration, pure oxygen filtration, bubble generator, floating bed gas distribution.
