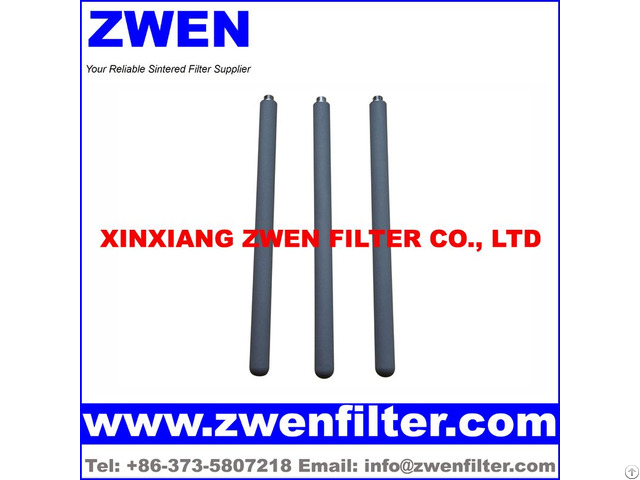

Sintered Powder Filter Cartridge - China

Sintered Powder Filter Cartridge Technical Parameter

Raw Material: SS 316L, Titanium

Filter Rating Range: 0.22 Micron ~ 100 Microns

Filter Efficiency: > 99.99 %

Operation Temperature: ≤ 816 ℃

Outside Diameter: 12 mm, 18 mm, 20 mm, 25 mm, 30 mm, 35 mm, 40 mm, 50 mm, 60 mm, 65 mm, 70 mm, 80 mm, 90 mm, 100 mm, 130 mm

Length: 5'' (127 mm), 10'' (254 mm), 20'' (508 mm), 30'' (762 mm), 40'' (1016 mm) or others

Gasket: PTFE, Viton, Silicone, Buna-n, EPDM

Connector/Fitting/Adap tor:

1 - DOE

2 - Code 2 (226+Flat End)

3 - Code 3 (222+Flat End)

4 - Code 7 (226+Fin End)

5 - Code 8 (222+Fin End)

6 - Thread (NPT, BSP, G, M, R)

7 - Flange

8 - Special customization Sintered Powder Filter Cartridge Feature

1 - Sintered powder filter cartridge has high porosity

2 - Sintered powder filter cartridge is good for backwash

3 - Sintered powder filter cartridge has high mechanical strength

4 - High filter efficiency

5 - High dirt holding capacity

6 - High temperature resistance

7 - High corrosion resistance

8 - Long service life Application

1 - Steam filtration (aseptic package, breweries, chemicals, dairies, electronics, food and beverage, pharmaceuticals, plastic)

2 - High temperature gases filtration (highly aggressive gases, nitrogen, carbon dioxide, compressed air, tank ventilation)

3 - High temperature liquid filtration (chemicals, cosmetics, paints, salt and seawater, syrups, coolants, food and beverage, pharmaceuticals, solvents, water)

4 - Catalysts powders recovery

5 - Precoat support filtration
