Sintered Metal Filter Cartridge For Liquid Industry - China

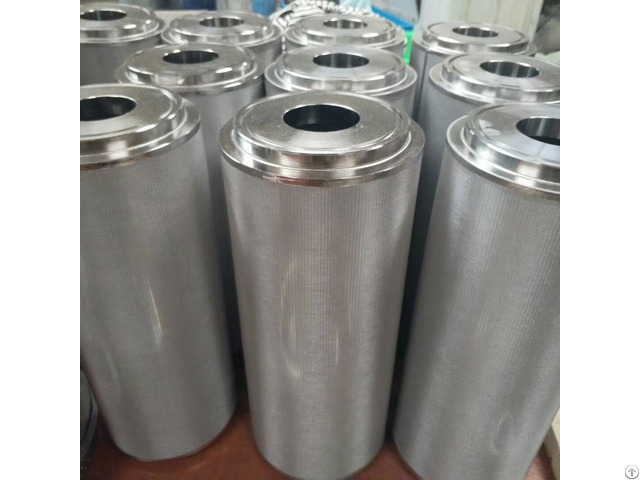

Stainless steel sintered folding filter elements / sintered metal filter cartridge for liquid industry The main material of stainless steel folding filter is made of 304, 304L, 316, 316L stainless steel fiber sintered felt and stainless steel woven mesh.

The stainless steel fiber sintered felt is a porous depth filter made of stainless steel fiber sintered at high temperature.

Material; stainless steel woven mesh is made of stainless steel wire.

The sealing faces of the filter core are joined by argon arc welding process.

The filter layer adopts multi-fold folding process to form a complete filter element, no leakage, no medium falling off, and large filtering area.

High filtration efficiency.

Technical parameters:

1, working temperature: ≤ 500 ° C

2, filtration accuracy: 1-200um

3, working temperature: 0.1-30MPa

4, filter element specifications: 5-40 inches (can be customized)

5, interface form: 222, 226, 215, M36, M28, M24, M22, M20 threaded interface, etc.

Features:

1 - High porosity, good gas permeability, low resistance and low pressure difference;

2 - After being folded, the filtering area is large and the amount of dirt is large;

3, high temperature resistance, corrosion resistance, suitable for high viscosity liquid filtration;

4, good regeneration performance, can be used repeatedly by chemical cleaning, high temperature and ultrasonic cleaning;

5, all stainless steel structure, wide chemical compatibility;

6 - High contamination retention capacity

7 - Disposable elements and cleanable elements

8 - Elements pleated

9 - Flow direction from out to in to maximize stability

10 - Excellent flow fatigue stability due to solid filter material support

11 - Standard filtration ratings: 3μm, 5μm, 10μm, and 20μm absolute
