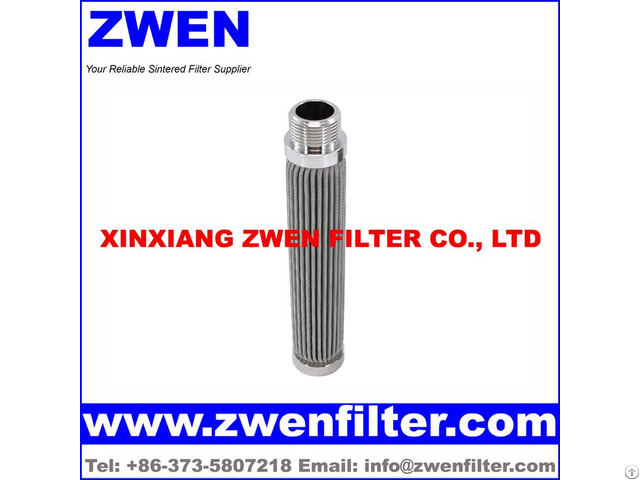

Pleated Wire Mesh Filter Element - China

Pleated Wire Mesh Filter Element Technical Parameter

Raw Material: SS 316L, SS 304

Filter Rating Range: 1 Micron ~ 300 Microns

Filter Efficiency: > 99.99 %

Operation Temperature: ≤ 816 ℃

Outside Diameter: 50 mm, 60 mm, 63.5 mm, 65 mm, 70 mm, 110 mm, 150 mm, 300 mm, 400 mm or others

Length: 5'' (127 mm), 10'' (254 mm), 20'' (508 mm), 30'' (762 mm), 40'' (1016 mm) or others

Gasket: PTFE, Viton, Silicone, Buna-n, EPDM

Connector/Fitting/Adap tor:

1 - DOE

2 - Code 2 (226+Flat End)

3 - Code 3 (222+Flat End)

4 - Code 7 (226+Fin End)

5 - Code 8 (222+Fin End)

6 - Thread (NPT, BSP, G, M, R)

7 - Flange

8 - Special customization Pleated Wire Mesh Filter Element Feature

1 - Pleated wire mesh filter element has large filter area

2 - Pleated wire mesh filter element has high flow rate

3 - Pleated wire mesh filter element is good for backwash 4 - High filter efficiency

5 - High mechanical strength

6 - High temperature resistance

7 - High corrosion resistance

8 - Long service life Application

Polymers filtration, high temperature liquid filtration, high viscosity liquid filtration, high temperature gases filtration, steam filtration, catalysts filtration, solvents filtration, fuel filtration, lubricant oil filtration, ink filtration, water filtration, beverages filtration, resin filtration, detergent filtration

Company Contact:

• Posted By: Xinxiang Zwen Filter Co., Ltd

• Phone: +86-373-5807218

• Address: NO.425, XINHUI ROAD, MUYE DISTRICT, XINXIANG , HENAN , China

• Email:

• Website: https://www.zwenfilter.com

• Business Description: Xinxiang Zwen Filter Co., Ltd has advanced sintering equipment, advanced welding equipment and a high level of skilled workers.

  Has passed iso 9001: 2008 quality management system and sgs audit test.

  Our main markets are european market and north american market.
