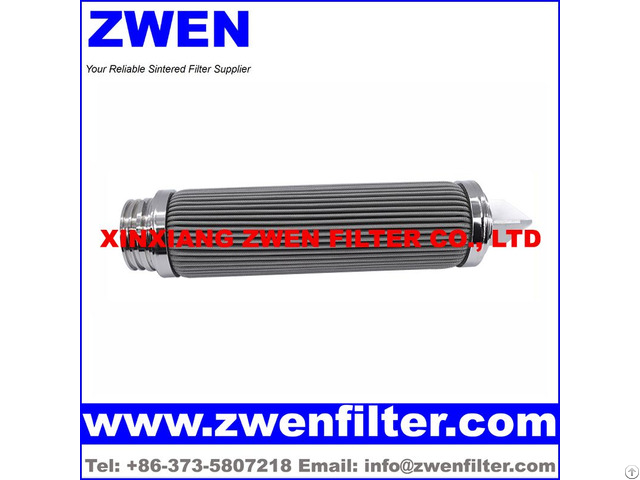

Pleated Metal Filter Element - China
price: 55.00 Dollar US$
Pleated Metal Filter Element Technical Parameter
Raw Material: SS 316L, SS 304
Filter Media: ZWEN Sintered Fiber Felt
Filter Rating Range: 1 Micron ~ 100 Microns
Filter Efficiency: > 99.99 %
Operation Temperature: ≤ 816 ℃
Outside Diameter: 50 mm, 60 mm, 63.5 mm, 65 mm, 70 mm, 110 mm, 150 mm, 300 mm, 400 mm or others
Length: 10'' (254 mm), 20'' (508 mm), 30'' (762 mm), 40'' (1016 mm) or others
Gasket: PTFE, Viton, Silicone, Buna-n, EPDM
Connector/Fitting/Adap tor:
1 - DOE
2 - Code 2 (226+Flat End)
3 - Code 3 (222+Flat End)
4 - Code 7 (226+Fin End)
5 - Code 8 (222+Fin End)
6 - Thread (NPT, BSP, G, M, R)
7 - Flange
8 - Special customization Pleated Metal Filter Element Feature
1 - Pleated metal filter element has large filter area
2 - Pleated metal filter element has high dirt holding capacity 3 - Pleated metal filter element has high porosity
4 - High filter efficiency 5 - High mechanical strength
6 - High temperature resistance
7 - High corrosion resistance
8 - Washable and Cleanable
9 - Long service life Application
Polymers filtration, high temperature liquid filtration, high viscosity liquid filtration, high temperature gases filtration, steam filtration, catalysts filtration, solvents filtration, fuel filtration, lubricant oil filtration, ink filtration, water filtration, beverages filtration, resin filtration, detergent filtration
Company Contact:
- Posted By: Xinxiang Zwen Filter Co., Ltd
- Phone: +86-373-5807218
- Address: NO.425, XINHUI ROAD, MUYE DISTRICT, XINXIANG , HENAN , China
- Email:
- Website: https://www.zwenfilter.com
Published date: May 3, 2023
- Business Description: Xinxiang Zwen Filter Co., Ltd has advanced sintering equipment, advanced welding equipment and a high level of skilled workers.
Has passed iso 9001: 2008 quality management system and sgs audit test.
Our main markets are european market and north american market.
Our Products:
Sintered Fiber Felt
Sintered Mesh
Sintered Mesh Filter Candle
Sintered Powder Filter Candle
Sintered Mesh Filter Cartridge
Sintered Powder Filter Cartridge
Sintered Mesh Filter Disc
Sintered Powder Filter Disc
Sintered Mesh Filter Element
Sintered Powder Filter Element
Sintered Mesh Filter Plate
Sintered Powder Filter Plate
Sintered Mesh Filter Sheet
Sintered Powder Filter Sheet
Sintered Mesh Filter Tube
Sintered Powder Filter Tube
Pleated Wire Mesh Filter Cartridge
Pleated Wire Mesh Filter Element
