Ingersoll Rand Air Oil Separator 22219174 Compressor Parts - China

Short info:

Working Time <4000 H

Initial Pressure Difference < 0.02 MPa

Residual Oil Amount < 3PPM

Model NO: 22219174

Micro: 0.1um

Separation Mode: Filter Type

Pressure: Low Pressure

Specification: 200*200

Cap: Carbon Steel

Material: Carbon Steel

Object: Fertilizer

Installation: Vertical

Transport Package: Carton Boxes

Origin: China

Distillation Equipment Type: Steam Distillation Equipment

Application: Industry

HS Code: 8421399090 Product Description

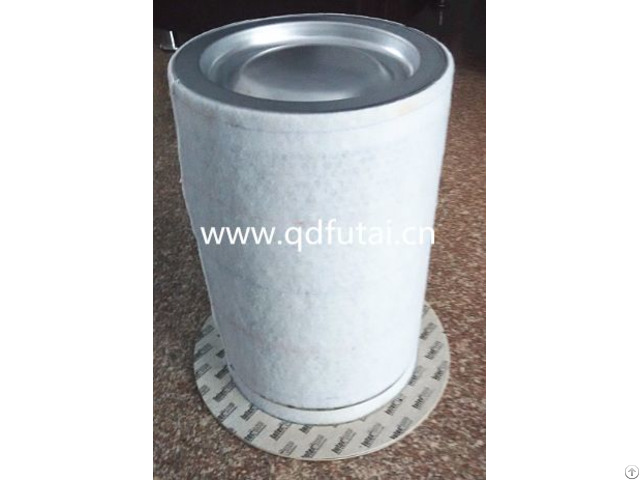

Replacement Ingersoll Rand Air Oil Separator 22219174

1 - Filtering precision: 0 - 1 Micron .

2 - Oil contained in compressed is below 3ppM.

3 - Filtration efficiency: 99.99%.

4 - Service life is approximately 4000h.

5 - Initial pressure differential less than 0.02Mpa.

6 - Filter element of air oil separator is made by the thin fiberglass, which imported from Germany HV company.

7 - Structure: The outer is metal nets, inside is high densite fiber glass and gas separation material, most inside is the metal nets, flange connection with sealing ring.

Packing Detail:

1 - Small carton boxes for each separator, then big thick carton boxes for several separators.

2 - Neutral packing or as customer require

The consequences for air oil separator filter extended use:

1 - Separation efficiency is poor, resulting in increased fuel consumption, increased operating costs, lack of oil serious may even lead to host failure;

2 - Compressed air outlet oil content increases, affecting the back-end purification equipment, resulting in gas equipment can not work;

3 - After the blockage increases, leading to the actual unit discharge pressure increases, increasing energy consumption;

4 - Oil gas separation filter run time is too long, the glass fiber material may falling into the oil, resulting in shortened life of the oil filter.
