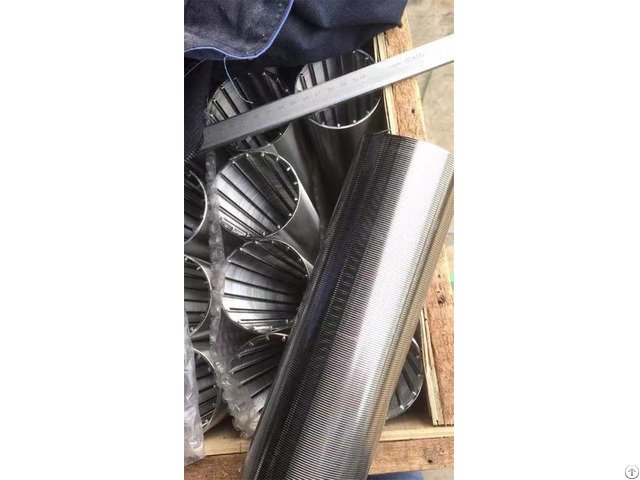

Continous Slotted Wedge Wire Screen Tube - China
price: 43.00 Dollar US$
hengshui guangxing screens Co., ltd can now offer welded wedge wire slot tubes with a tolerance on the slot opening of +/- 10 micron.
Because of these small tolerances, we can now even produce filter cartridges with a slot opening of 10 micron.
Very tight tolerances on the slots, result in a very accurate filtration process.
With these tolerances, the filtration process with the bigger slot openings will now also be far more accurate then before.
Our wedge wire cartridges with 10 micron, can be used in air, dust and gas filtration, where they can replace the existing paper and mesh filters.
Some conditions to produce 10 micron: Diameter of the filter: from 45 mm up to 110mm
OD 45 mm → 70 mm: max.
length 2000 mm
OD 70 mm → 110 mm: max.
length 1000 mm
Filtration has to be from outside to inside (FOTI)
Used profile wire has to be 0, 76 mm wide
Advantage of WEDGE WIRE FILTERS The smooth filtering surface of the wedge wire filters helps easy cleaning, by wiping of or by backwash, where for paper and mesh filters cleaning is never efficient or sometimes impossible.
There are no recurring expenses in case of welded wedge wire candles, where paper and mesh filters are disposable and need to be replaced.
The slot opening of wedge wire filters always remains constant, where for paper and mesh filters the slot opening may widen or get disturbed.
Johnson Screens effectively increase the surface area of the bed which disperses the scale over a wider area, thus extending the bed’s useful life.
This is easily done by placing an array of screens in the upper part of the catalyst bed where, depending on screen size and placement, they can increase the total effective bed area by up to 400 percent and trap most of the contaminants present in the flow.
Not only do the screens resist normal operating stresses, but they can also survive being dumped with the catalyst.
And when it’s time for routine cleaning, they can be vigorously wire brushed or blasted without breaking or tearing.
Standard scale traps range from: OD : 102 mm to 168 mm .
Length : 300 mm / to 1 m.
Slot opening : 0.5 mm / 0.020 in.
to 1.5 mm / 0.060 in.
Total screen open area can be as high as 50 percent
Company Contact:
- Posted By: hengshui guangxing screens Co., Ltd
- Phone: 00863187086206
- Address: NO.2589 WEST SHENGLI ROAD , HENGSHUI,CHINA , hengshui , China
- Email:
- Website: http://www.guangxing-screens.com
Published date: July 9, 2024
- Business Description: Guangxing screen company is a professional manufacturer and exporter, well known for its excellence in customer services and its leadership in technology.
Apply ourselves to customers worldwide, guangxing is highly specialized in wedge wire screen and other related wedge wire filtration products used in various industries.
Guangxing screen company is a manufacture who has been specialized in the production and export of different kinds of filters Since 1986, such as stainless steel water well screen, sand control screen , oil well screen, rod based pipe screen, candle filter elements .
And our products have a wide range of uses like water treatment, coal mining , food processing, paper making.
After years of effort, our products are selling well all over the world, such as Europe, USA, Southeast Asia, Middle-East, etc, and enjoys an excellent reputation internationally.
For the continuous improvement, we can now get to a new level of high quality wedge wire filtration and separation products
