Yn27c Gas Powered Hammer Drill - China

Item name:

YN27C internal combustion rock drilling machine / internal rock drlls / gasoline rock drills without electric

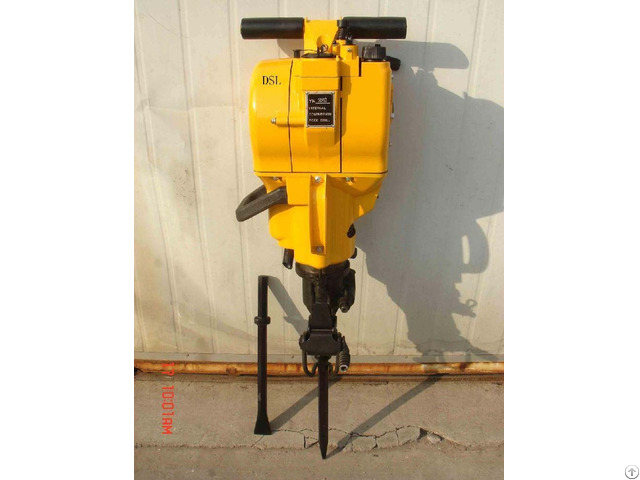

YN27C Internal Combustion Rock Drill is a hand-operated rock-drilling tool, composed of a small gasoline engine, an air compressor and rock drill.

Its outstanding characteristic is that the stated functions can be realized by changing the hand handle according to the requirements without changing the inner parts of the machine head.

Available for drilling, splitting breaking, ramming, shoveling.

And widely used in mining, road construction, quarrying and national defense construction.

The Internal Combustion Rock Drill Type YN 27C has functions of drilling holes, cleavage, bruising, tamping and chiseling.

Application:

Available for drilling, splitting breaking, ramming, shovelling.

And widely used in mining, road-construction, quarrying and national defense construction, etc.

Advantages:

a.

Needless to replace the internals of the ingine head, just handle the handle to operate it.

b.

Easy to operate.

More timesaving and effortless.

Drilling faster and more efficient.

c.

Have reached the Tip-top level of the same field now, and allow to be replaced with the same kind of the domestic products.

YN27C gasoline rock drill YN27C Internal Combustion Rock Drill is a hand-operated rock-drilling tool, composed of a small gasoline engine, an air compressor and rock drill.

Its outstanding characteristic is that the stated functions can be realized by changing the hand handle according to the requirements without changing the inner parts of the machine head.

Available for drilling, splitting breaking, ramming, shoveling.

Application: And widely used in mining, road construction, quarrying and national defense construction.

The Internal Combustion Rock Drill Type YN 27C has functions of drilling holes, cleavage, bruising, tamping and chiseling.

Model YN27C

Weight 27kg

Dimension 746*315*229mm

Function Drilling

Type of carburetor Hand needle valve, no floating type

Type of engine Single cylinder, air cooled two strokes

Diameter of engine piston Φ58mm

Stroke of engine piston 70mm

Rotating speed of engine ≥2450R/min

Rotating speed of drilling rod ≥250R/min

Oil consumption ≤0.12L/min

Max.

drilling depth 6m

Tank capacity ≥1.14 L

Shank size Hex22x108mm

Mixture ratio of gasoline and lubrication oil 0.500694444
