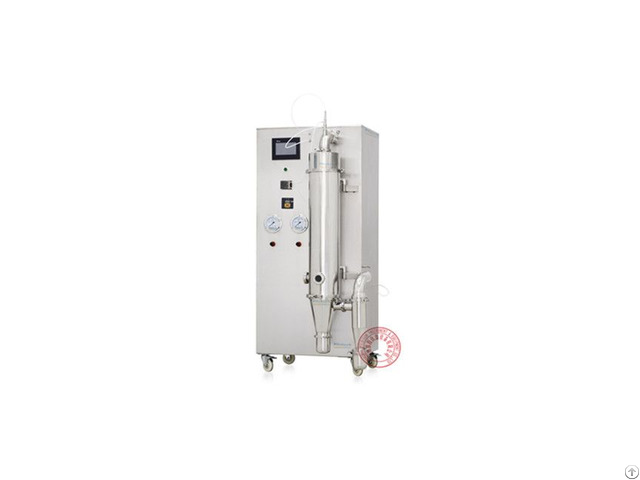

Yc 018 Pilot Spray Dryer Machine - China

Pilotech YC-018 lab spray dryer is capable of processing 3500ML per hour, and it only needs a minimum amount of 100ML materials to perform one experiment.

Is suitable both for laboratory use and the pilot plant use.

The inlet air temperature for the YC-018 laboratory spray dryer ranges from 110 to 350 °C.

As the range is relatively wide, it is suitable for drying the spray of most materials.

After the drying process, the particle size ranges from 1 to 100 microns, so it is suitable for the spray drying of ceramics and catalysts.

Large particle processing ability Size of particles dried with conventional lab spray dryers is generally 1-25μm, but they cannot meet requirements of processing of catalyst and other large particles.

With YC-018, you can get particles with a maximum size of 100μm and it is the first choice for processing of catalyst and other large particles sizing 60-100μm.

Perfect combination of low temperature and ultra-high temperature With maximum inlet air temperature reaching 350°C, it can meet ultra-high temperature drying requirements of ceramics and other materials; with minimum inlet air temperature being 105°C, it is especially suitable for spray drying of traditional Chinese medicine, extracts of natural substances and other materials with sugar content.

No material will adhere to the wall during drying and materials are featured with excellent fluidityafter drying.

YC-018 lab spray dryer Controls & Functionality YC-018 lab spray dryer is designed to ensure that all functions are simple to select and adjust, to quickly achieve the optimum conditions for spray drying.

Both use a clear touch screen display, the operator can control the following functions: Inlet Temperature Airflow Volume Air compressor flow Pump Speed De-blocker Frequency YC-018 lab spray dryer Easy to use Color Touch Screen, Fast setup and cleaning times Scale up to pilot or industrial scale possible.

Visible process due to glass assembly Adjustable particle size (1 – 100 microns) YC-018 lab spray dryer Two Fluid Nozzle with SUS316L stainless steel YC-018 lab spray dryer Two Fluid Nozzle with SUS316L stainless steel The stainless steel spray assembly consists of an inner tube for the liquid sample leading to a small diameter jet.

An outer tube directs compressed air to the nozzle.

All units are supplied with 0.7mm jets, other sizes are available as accessories.

The spray assembly incorporates an automatic de-blocking device that prevents the jet nozzle from becoming blocked, the de-blocking needle is activated by an integral compressor.

De-blocker is sometimes necessary with materials which may solidify or when large particles in suspension cause blockages in the jet.

High recovery rate With only one cyclone separator, recovery rate is always a problem with lab spray dryers and it is difficult to improve recovery even with two cyclones.

With the structured redesigned, YC-018 lab spray dryer can reach a maximum recovery rate of 92%, excellently solving the problem of low recovery.

Temperature protection The heater has an extreme high temperature when experiment finished, which needs air blower to continue working in order to reduce the inside temperature and ensure the safety of equipment, YC-018 spray dryer can control air blower running automatically, even the operator wants to turn off the air blower, the system would prevent the operator until the temperature of system reduce to the default security state of system ; SUS 304 stainless steel Spray chamber, cyclone separator, collector are all made of SUS 304 stainless steel .

It can work in a no-pollution and stable environment, and sight glass equipped so the whole process can be inspected.

All the spare parts are easy to install and clean.

Trusted by the users Over 1, 500 domestic customers of top universities, enterprises and research institutes use our mini spray dryer.

And exported to more than 40 countries & regions such as the United States, Italy, South Korea, Mexico, Singapore, Canada, Malaysia, Chile and Russia etc.

YC-018 lab spray dryer PRINCIPLE A menu driven microprocessor controller allows the selection of inlet temperature, airflow, automatic de-blocker frequency and pump speed.

The self-priming peristaltic pump delivers the sample liquid from a container through a small diameter jet into the main chamber.

At the same time an integral compressor pumps air into the outer tube of the jet which causes the liquid to emerge as a fine atomised spray into the drying chamber.

Heated air is blown through the main chamber evaporating the liquid content of the atomised spray.

The solid particles of the material, which are normally in a free flowing state, are then separated from the exhaust air flow by a cyclone and collected in the sample collection bottle.

The exhaust airflow is directed through a flexible 60 mm diameter hose direct to atmosphere or to an existing extraction system.
