Yarn Length Measurement Test Instrument - China

Standards：

FZ/T 70001-2003, FZ/T 71004-2003 Scope:

Used for measuring the cycle length of a variety of knitting wool, knitting wool circle.

For checking that if the length of various linear density (count) hank girth compliance with standards.

Product details:

The stir yarn spread evenly apply a predetermined tension, according to the pointer, to determine whether the length of the loop skein standard

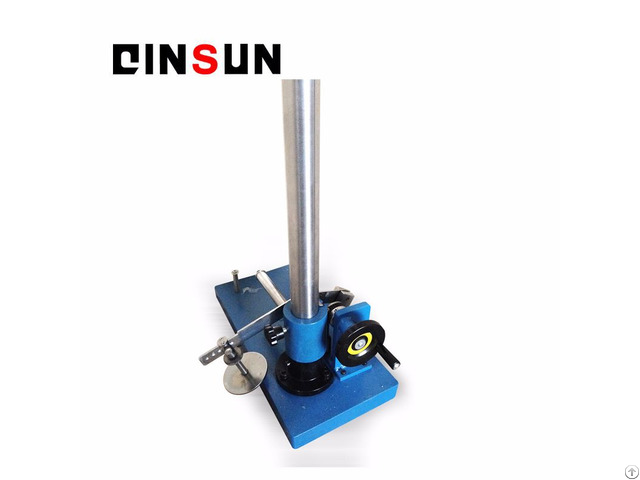

Structure:

Instrument uprights fixed on the base for securing the sleeve, the ruler, and the sleeve as the next slide.

Equipped with rollers in the vertical sleeve, measured skein on the set on the roller can be changed on the sleeve is fixed to the vertical position to accommodate different length of the loop skein.

Hank tension measured by standard quality selection of different weights, tension is applied via a lever on the measured hank.

Test Methods:

The upper end of the sample after the humidity balance in wool circle long sleeve length measuring instrument blade hanging plate, spread evenly so that the coil will be set at the lower end of the sample loop yarn length measuring long blade hanging inner panel, hang up predetermined weight, the lower plate slowly down to rest, within half a minute recording the scale readings accurate to 0.1cm.

Hanging weight (including the lower blade plate weight 1.4kg) provides as follows
