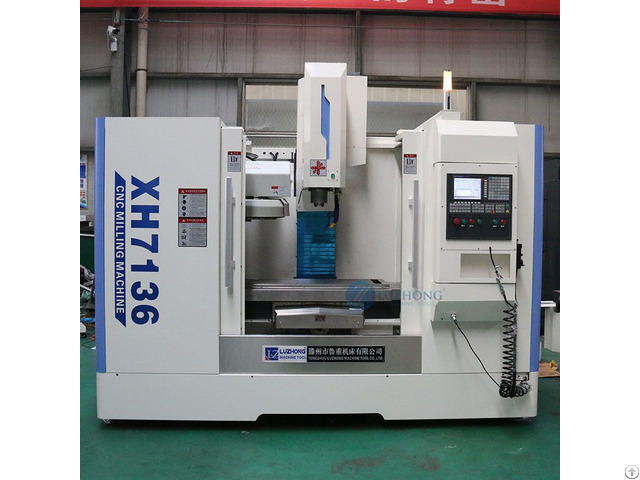

Xh7136luzhong Cnc Hobby 4 Axis Milling Machine Center For Metal Processing - China

Standard configuration: 1 - The CNC system: KND, GSK, Fanuc and etc.

2 - The knife: The famous Taiwan tools changer

3 - The weight: Wuxi Xieqing nitrogen balance

4 - The high quality castings: Resin sand casting

5 - The spindle: Taiwan famous high speed spindle

6 - The Internal protection: Total or half protection

Select the configuration:

1 - M70B/M70A Mitsubishi FANUC 0i mate MD

2 - The CNC dividing head

3 - The taiwan famous brand manipulator knife storehouse

4 - NC rotary table

5 - The chip cleaner

6 - The fourth axis

The main performance characteristics：

1 - The fuselage and main components are high strength cast iron, microstructure stability, ensure the stability of machine tool for long-term use.

2 - The column at the bottom of A type bridge type structure, combined with the big box base, greatly reduce the vibration of machine on heavy cutting

3 - The pretension precision ball screw drive

4 - The high speed, high precision, high rigidity spindle unit

5 - The design of oil-water separation

6 - The intermittent automatic lubrication

7 - Automatic scraping knife system

Application：

The vertical machining center can be applied to many fields such as mechanical processing and mould manufacturing, can adapt from roughing to finishing processing requirements, has the characteristics of high precision, high efficiency, is widely used in aerospace, military industry, mould, automobile, internal combustion engines, textile machinery, chemical machinery processing, oil, electronics and other industries.

Product main technical specifications:

Specifications Units XK7136 XH7136

Table size mm 1250x360 1250x360

X axis travel mm 900 900

Y axis travel mm 400 350

Z axis travel mm 500 500

Max.

worktable load kg 460 300

T slot(number-width-pitch) 3-18x80 3-18x80

Max.

spindle speed rpm 8000 8000

Spindle taper mm BT40 BT40

Main motor power kw 5.5 5.5

X/Y/Z rapid traverse speed m/min 6/6/4 10/10/8

Cutting feed speed mm/min 1-10000 1-2000

Guide rail type Hard rail Hard rail

Distance from spindle axis to column surface mm 460 460

Distance between spindle nose and worktable surface mm 100-600 100-600 Positioning accuracy mm ±0.04 ±0.04

Repeat positioning accuracy mm ±0.02 ±0.02

Tool magazine - 16 Armless/(Optional: Arm 16 )

Max.

tool diameter mm - Max.

tool weight kg - Machine weight kg 2800 2600

Overall dimension mm 2380x1900x2350 3000x2400x2500
