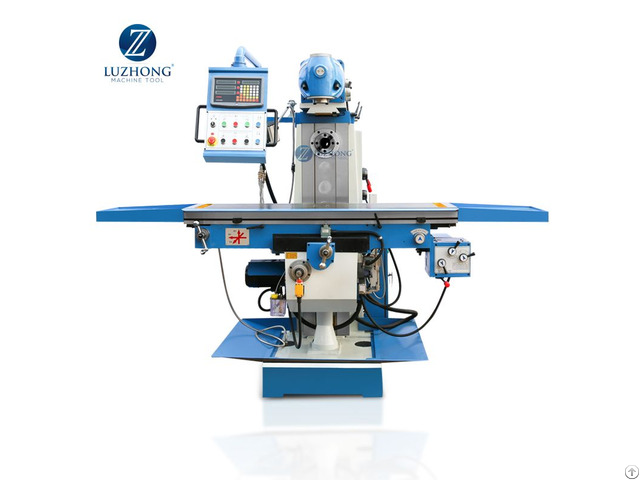

X6436 Luzhong Manual Metal Vertical Bench Drilling Machine With Swivel Head - China

The main performance characteristics： 1 - It can realize vertical and horizontal milling two processing function;

2 - The two rotary milling head, spindle at any angle rotating and adjustment; 3 - Can be used for processing and mold shell;

4 - Work bench X.

Y all are gear drive automatic feed, Z to the electric lift.

5 - Modeling beautiful, generous, overall layout of symmetry coordination.

rail surface heat treatment of high hardness, strong steel, gear up for gear grinding, by high frequency quenching and low noise durable

Application：

Un iversal rotary head milling machine is a kind of medium and small general metal cutting machine tools, that can lie milling and can vertical milling.

Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc cutter, molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane, grooves, holes, and other gear.

Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries of the ideal processing equipment.

Product main technical specifications:

Specifica tions Units X6436

Table size mm 1500x360

Table travel mm 1000/320/450

T-slot numbers / width /space mm 3-18-80

Spindle taper ISO40(V)

ISO50(H)

Spindle speed range rpm 48-1660rpm(V)

40-1300(H))

Distance between spindle nose and table surface mm 150-550

Distance between spindle axis and table surface mm 0-400

Range of table feed mm /min XY: 22-555, Z: electric

Milling head swivel range ° 360

Spindle motor power kw 4(H)/4(H)

Feed motor power kw 1.1

Weight kg 2580

Overall dimension mm 2550x2050x2050
