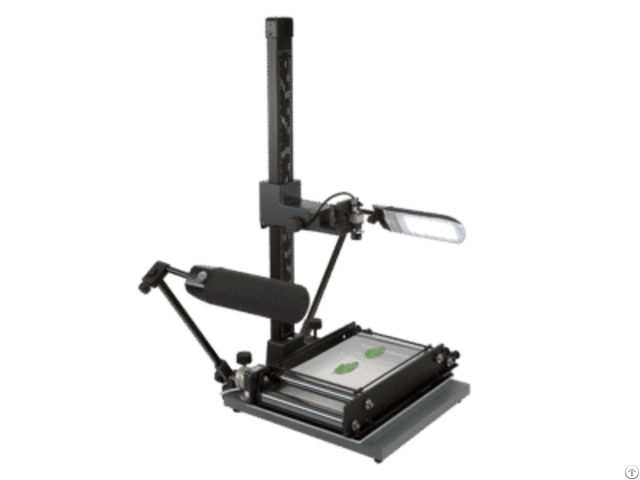

Windias Leaf Image Analysis System - China
price: contact company for price
The recently upgraded WinDIAS 3 Leaf Image Analysis System provides fast, accurate measurement of leaf area and leaf features – making it ideal for plant pathology and phenotyping applications.
WinDIAS’s analysis features are well suited to applications where precise colour discrimination is critical.
Specification Entry Level System Standard System Rapid System
Throughput (leaves/hour) ~50 (typical, depends on leaf size) ~150 ~800
Resolution Typically >1000 dpi 2048 x 1536 pixels 1280 x 1536 pixels
Minimum object size ~ 0.02 mm 1 pixel 1 pixel
Maximum sample area 297 x 210 mm (A4) 300 x 295 mm 250 x 290 mm (conveyor) 250 x >1000 mm (long leaf mode)
Accuracy area measurement [1] ± 1% typical ± 4% typical ± 4% typical
Accuracy diseased/healthy area contrast dependent contrast dependent contrast dependent
Accuracy long leaf mode not applicable not applicable ± 5% typical
Calibration static measurements against an object of known length, e.g. a ruler against a ruler
Calibration conveyor measurements not applicable against a target of known area
Conveyor belt speeds not applicable not applicable 60/100/140/190 mm/s (20% faster for 60Hz model)
Colour depth WinDIAS works in 24bit colour space (16 million colours)
Image file formats .
jpg, .
bmp and .
tif (WinDIAS is compatible with many scanners and cameras that are TWAIN compliant)
Operating system and drivers Windows 7, 8 and 10 (32 and 64 bit)
Company Contact:
- Posted By: Channel Tech scientific Instruments
- Phone: 15611257114
- Address: Suite 6B13 Huajie Plaza, 13 Dazhongsi, Haidian District, Beijing , BeiJing , China
- Email:
- Website: https://www.channeleco.com
Published date: April 11, 2019
