Water Vapor Permeability Tester Manufacturer - China

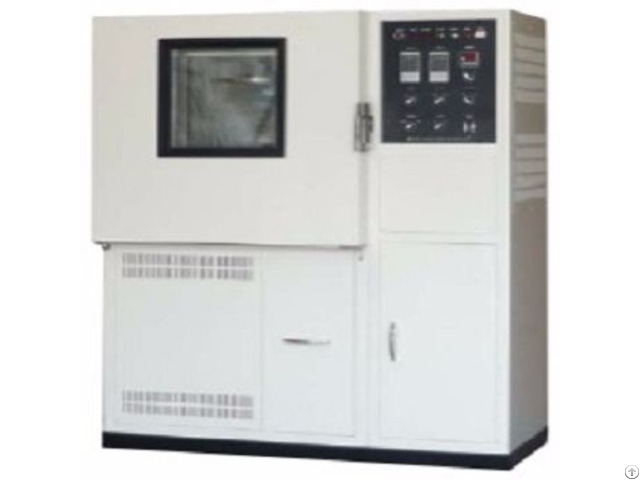

The device is a constant temperature and humidity moisture permeability test device, which is suitable for sportswear and other requirements of the waterproof, moisture permeability of both the fabric, as well as plastic film, processed paper and other moisture-resistant packaging materials for the purpose of moisture permeability evaluation test.

Place a quantity of anhydrous calcium chloride into the empty moisture-permeable cup.

Then install the sample and seal the moisture-permeable cup with the sample.

The moisture permeable cup of the sealed package was placed in a laboratory for fixed temperature and humidity conditions for a period of time, and the moisture permeability of the sample was calculated by increasing the weight of anhydrous calcium chloride, thereby determining the moisture permeability of the sample.

Application:

The device is a constant temperature and humidity moisture permeability test device, which is suitable for sportswear and other requirements of the waterproof, moisture permeability of both the fabric, as well as plastic film, processed paper and other moisture-resistant packaging materials for the purpose of moisture permeability evaluation test.

Standards:

JIS L1099A Testing methods for water vapour permeability of textiles

JIS Z 0208 Testing methods for determination of the water vapour transmission rate of moisture-proof packaging materials Technical Parameters

Items Parameters

Temperature range 20-50℃(Accuracy ：±0.3℃)

Moisture range 50-95%(Accuracy ：±2.0%)

Freezer Air-cooled airtight compress

Cooler Multi - stage heat sink cooler

Humidifier Pot-type humidifier

Heater Finned radiator

Circulating blower Blower

Disc sample rack 270mm, 2 paragraphs

Rotation speed of sample rack 8r.p.m

Water supply method Pump pumping

Water tank 10L

Moisture-permeable cup JIS L 1099A Act requirements (10 groups)

Power AC 100V 50/60HZ 3KW

Indoor dimension W350×D350×H500mm

Outside size W1100×D550×H1500mm
