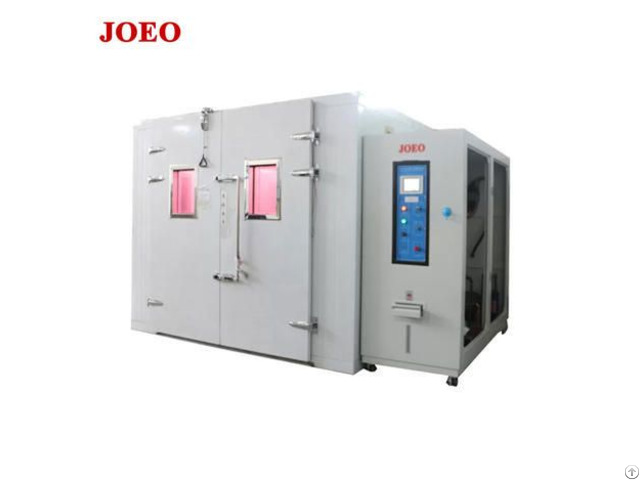

Walk In Xenon Iamp Aging Test Chamber - China

Meet Standard

ASTM G155: Standard Practice for Operating Xenon Arc Light Apparatus for Exposure of Non-Metallic Materials.

ASTM 04459: Standard Practice for Xenon-Arc exposure of plastics intended for indoor applications.

ISO 4892-1 Plastics - Methods of exposure to laboratory light sources.

ISO 16474-2 Paints and varnishes - Methods of exposure to laboratory light sources - Part 2

Application

JOEO Walk in xenon lamp aging test chamber, xenon test chamber, xenon arc test chamber, Walk in xenon chamber, xenon light fastness tester adopts xenon arc lamp that can simulate the full sunlight spectrum to reproduce the destructive light waves existing in different environments, which can provide corresponding environmental simulation and accelerated test for scientific research, product development and quality control, xenon lamp test, also known as the "solar radiation protection test, " is divided into three types based on test standards and methods.

Air cooled xenon lamp (LP/SN-500), water cooled xenon lamp (LP/SN-500), and desk xenon lamp (TXE) are indispensable testing instruments in the aging test chamber series.

JOEO xenon arc chamber, light fastness testing machine, xenon arc lamp aging test chamber is mainly used in automobiles, coatings, rubber, plastics, pigments, adhesives, fabrics, aerospace Structure:

JOEO walk in xenon aging test chamber the outer cavity is made of 1.5mm thick cold-rolled steel plate, brushed and polished, and high temperature paint treatment, which is not easy to scratch.

The door body is sealed by double-layer silicone sealing material with good sealing effect.

Xenon lamp aging test chamber the inner chamber is fully welded from 1.2mm thick SUS304 stainless steel plate.

The advantage of full welding is good sealing and not easy to crack.

Observation window is 4 layers of tempered glass, window size can be customized according to customer requirements.

The insulation material is made of polyurethane automatic mechanical foaming, and the thickness of the insulation layer is 100mm.

Advantages

Ventilation and cooling device: the temperature ventilation and cooling system of the test chamber is automatically controlled by the temperature controller, and the cooling system is used in the test chamber for cooling.

Control blackboard thermometer using wired transmission technology, effectively improve the control accuracy.

Large carrier: The JOEO xenon arc weathering test chamber has a large test chamber space, which can accommodate multiple samples, and the test efficiency is high.

The use of optical fiber transmission to measure the radiation intensity of xenon lamp, to avoid the measurement error caused by temperature.

Device: In order to record the working time of each test, the device is equipped with a timer on the operation panel, which can control the time of the device, and the device will automatically shut down after the time is finished.

Protection device: In order to make the xenon arc lamp work normally without damage, the xenon lamp is automatically extinguished when opening the door, and the whole machine stops working
